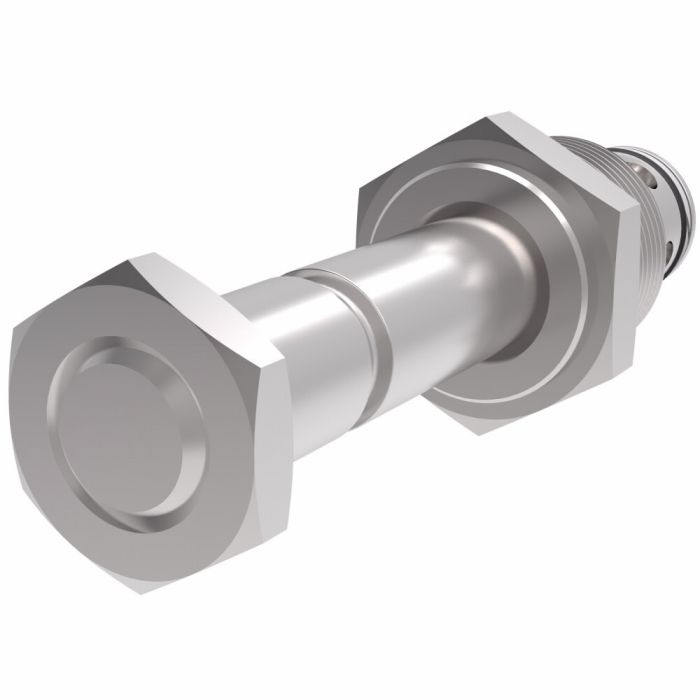

SV4-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

The SV4-10-O Series 2-Way 2-Position Normally Open Solenoid Cartridge Valve Housing: None Coil: Not Included offered by DANFOSS-HYDRAULICS is engineered for various mobile and industrial applications such as harvesters and refuse haulers. This direct-acting valve exhibits a robust performance with a pressure rating of 3000 PSI and a flow rating of 6 GPM. Constructed from hardened and ground steel the valve ensures durability and reliability under high pressure conditions.

With its compact and economical design this solenoid valve allows bidirectional flow between port 1 and port 2 when de-energized while both ports close when energized. It fits into a Cavity size C-10-2 housing which is sold separately.

Operating within a temperature range of -40deg;F to 248deg;F the valve requires a filtration cleanliness level of ISO 4406 18/16/13. The valve features Buna-N seals and generates a maximum internal leakage of 5 insup3; per minute at 3000 PSI with the valve energized.

MPN: SV4-10-O-0-00

Supplier Part Number: 565542
