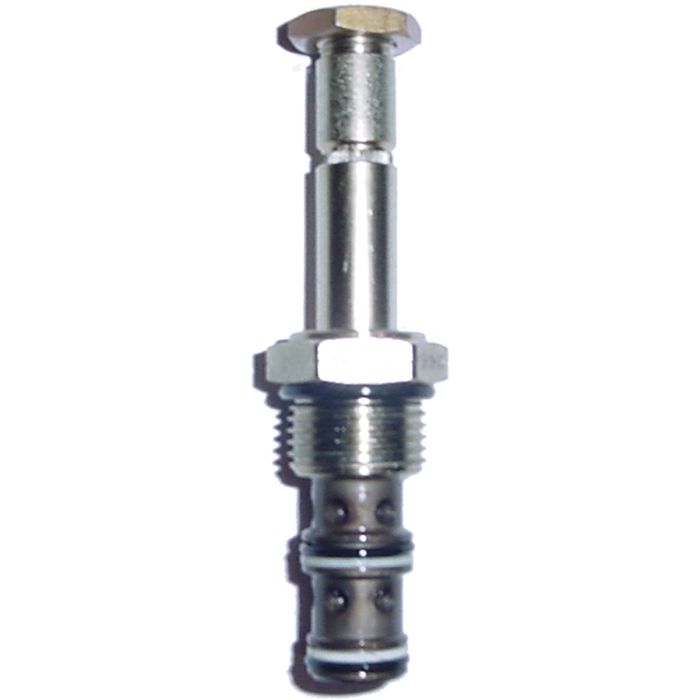

main product photo

SV4-8-3 Series 3-Way, 2-Position, Solenoid Cartridge Valves, Up To 4 GPM & 3000 PSI

Ask A Question

Description & Features

Cartridge Model SV4-8-3*, sold separately.
Coil S Series 16 Watt, sold separately, see
Group Description The SV4-8-3 is a 3-way, 2-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating 4 GPM.
Housing Cavity size C-8-3, sold separately, see
Internal Leakage 5 in³ per minute maximum @ 3000 PSI.
Note Performance data is typical with fluid at 105 SSU and 120°F.
Operation In the de-energized position, this valve allows flow from port 2 to port 1 while port 3 is blocked. In the energized position, flow is allowed from port 2 to port 3 while port 1 is blocked. Pressure on port 1 should not exceed 300 PSI.
Pressure Rating 3000 PSI port 2 and port 3. 300 PSI port 1.
Recommended Filtration ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors (Required on models that use DIN 43650 connectors).
Temperature Range -40°F to 248°F (Extreme Limits).

Products

Product Questions & Answers (1)

Question by: Jimmy B on Jun 16, 2025, 2:30 PM
What size cavity is needed for this valve?
Answer by: Customer Support on Jun 18, 2025, 6:11 AM
This valve requires a C-8-3 size cavity. You'll need a machined cavity or housing to install it properly.
