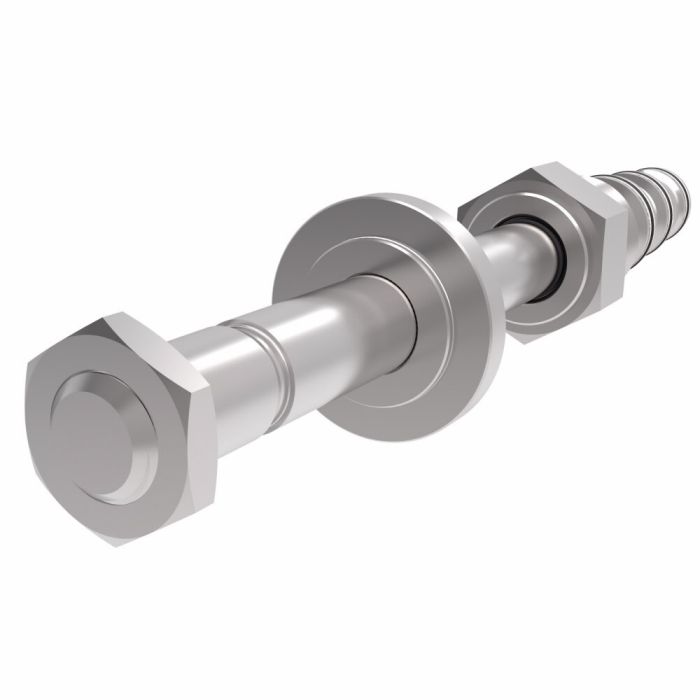

SV9-10 Series 4-Way, 3-Position Solenoid Cartridge Valve, P Blocked, A&B Open to Tank, Housing: None, Coil: Not Included

Description & Features

The Vickers by Danfoss / Eaton SV9-10-F Series Solenoid Valves are optimized for demanding mobile and industrial applications such as harvesters and refuse haulers. The solenoid cartridge valve operates as a 4-way, 3-position configuration, offering P blocked and A & B open to the tank circuit type.

Crafted from hardened and ground steel, this direct-acting valve provides durability and reliability. It supports a pressure rating up to 3000 PSI and features a maximum internal leakage of 15 insup3; per minute at 3000 PSI. With a flow rating of 5-6 GPM depending on the model, the SV9-10 series ensures efficient fluid control.

The valve's operational temperature ranges from -40deg;F to 248deg;F, making it suitable for extreme environments. The installation requires a screw-in cartridge type, with the housing cavity size C-10-4 sold separately. Recommended filtration levels meet ISO 4406 Cleanliness Level 18/16/13 or cleaner.

Maintenance is facilitated through its cartridge-only design, while its Buna-N seals and no special features add to its practicality. This valve does not include a coil, which must be selected separately, with options such as the J Series 20 Watt coil available.

MPN: SV910NF00000000000000A

Supplier Part Number: 02-199329

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Circuit Type P Blocked, A&B Open to Tank	Coil Not Included	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 4	Number of Valve Ports 4	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 4-Way 3-Position	Supplier Part Number 02-199329	Switch Connector No	Valve Material Cartridge only	Product Weight 2.10 lbs	Alternate Part Numbers Alternate Part Number C1KX60, Alternate Part Number MINO-00569H80216, Alternate Part Number SV910NF00000000000000A

Similar Products

Model Number	Part Number	Circuit Type	Housing	Coil	Seal Material	Price	Action
SV910NA00000000000000A SV9-10 Series Cartridge Valve	02-199325	Tandem Center	None	Not Included	Buna-N

Product Questions & Answers (5)

Question by: Lynn M on Sep 3, 2025, 5:44 PM

got a C-10-4 cavity block already, will this SV9-10 screw right in or am i missing something

Answer by: Customer Support on Sep 5, 2025, 7:24 AM

It is a screw-in cartridge built for the C-10-4 cavity, but it ships as cartridge only. You will still need the matching SV9-10 housing (sold separately) and a J Series 20 watt coil (also sold separately) to make a complete working assembly.

Question by: Donna P on Aug 19, 2025, 8:38 AM

hey what all comes in the box with this valve do I need to buy a coil and housing or are they included

Answer by: Customer Support on Aug 20, 2025, 12:38 PM

You will need to purchase the coil and housing separately since this is just the bare cartridge. It requires a J Series 20 Watt coil and fits directly into a C-10-4 size cavity.

Question by: Sherry E on Jun 10, 2025, 8:07 PM

Does this cartridge come with a housing or do I need to order that separate? Also what about the coil, is that thrown in?

Answer by: Customer Support on Jun 11, 2025, 8:31 PM

Neither the housing nor the coil are included with this cartridge. The cavity size you'll need is C-10-4, and that has to be ordered separately. Same goes for the coil, the J Series 20 Watt coil is a common match but it's a separate purchase. Worth getting both sorted out before you go to install so everything's on hand at once.

Question by: Lyle R on Mar 28, 2025, 5:56 PM

got a manifold already, does this valve come with the coil and housing or is it just the cartridge?

Answer by: Customer Support on Mar 30, 2025, 10:09 AM

Cartridge only is what you are getting here. It does not include a coil, and it does not include a housing. It installs as a screw in cartridge and needs a machined C-10-4 cavity or a separate housing.

Question by: Jimmy A on Jul 2, 2025, 10:20 AM

Will this valve hold up okay in a hydraulic system on a farm combine? We get some pretty hot summers around here.

Answer by: Customer Support on Jul 4, 2025, 7:05 AM

This SV9-10 series valve is rated for temperatures between -40°F and 248°F, so it should handle even a hot summer without issue.
