SV9-10 Series 4-Way, 3-Position Solenoid Cartridge Valves, Up To 6 GPM & 3000 PSI

Description & Features

Cartridge	Model SV9-10*, sold separately.
Coil	J Series 20 Watt, sold separately, see

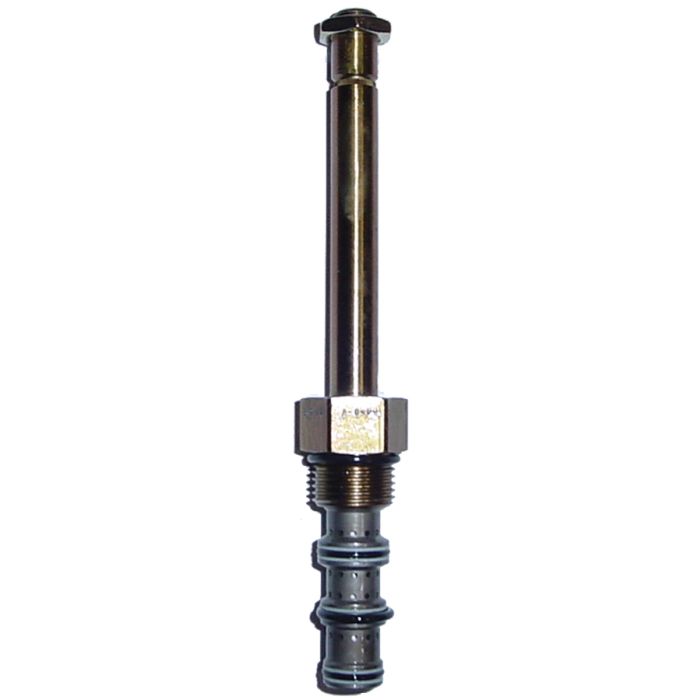

Group Description	The SV9-10 is a 4-way, 3-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	Tandem Center models 5 GPM, Others 6 GPM.
Housing	Cavity size C-10-4, sold separately, see
Internal Leakage	15 in³ per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	Closed Center Valves: In the de-energized position, all ports are blocked. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1. Tandem Center Valves: In the de-energized position, this valve allows flow from 3 to port 1 and blocks ports 2 and 4. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Model Number	Part Number	Circuit Type	Housing	Coil	Seal Material	Price	Action
SV910NF00000000000000A SV9-10 Series Cartridge Valve	02-199329	P Blocked, A&B Open to Tank	None	Not Included	Buna-N
SV910NA00000000000000A SV9-10 Series Cartridge Valve	02-199325	Tandem Center	None	Not Included	Buna-N

Question by: Norm S on Sep 18, 2025, 9:43 PM

Will this fit a standard C-10-4 cavity? Just want to double-check before I order.

Answer by: Customer Support on Sep 20, 2025, 6:31 AM

It does require a C-10-4 cavity size housing for installation. Those housings are sold separately.
