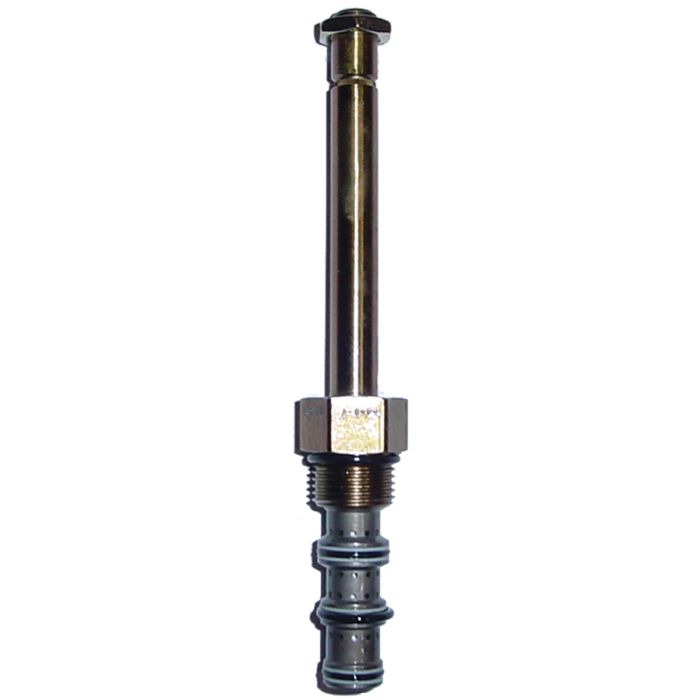

SV9-8 Series 4-Way, 3-Position, Solenoid Cartridge Valves, Up To 3.5 GPM & 3000 PSI

Description & Features

Cartridge	Model SV9-8*, sold separately.
Coil	P Series 20 Watt, sold separately, see
Group Description	The SV9-10 is a 4-way, 3-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	Tandem Center models 3 GPM, Others 3.5 GPM.
Housing	Cavity size C-8-4, sold separately. Aluminum NFPA fatigue rated models: 02-160749 SAE-6 Ports, 02-160750 SAE-8 Ports. See
Internal Leakage	10 in³ per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	Closed Center Valves: In the de-energized position, all ports are blocked. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1. Tandem Center Valves: In the de-energized position, this valve allows flow from 3 to port 1 and blocks ports 2 and 4. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Model Number	Part Number	Circuit Type	Housing	Coil	Seal Material	Price	Action
VICK SV98NF00000000000000 SV9-8 Series Cartridge Valve	02-198685	P Blocked, A&B Open	None	Not Included	Buna-N

Question by: Phil C on Apr 22, 2025, 8:07 AM

Will these valves work with just any coil, or do I need to get a specific type?

Answer by: Customer Support on Apr 23, 2025, 11:40 AM

The SV9-8 series requires P Series 20 Watt coils, which are sold separately.
