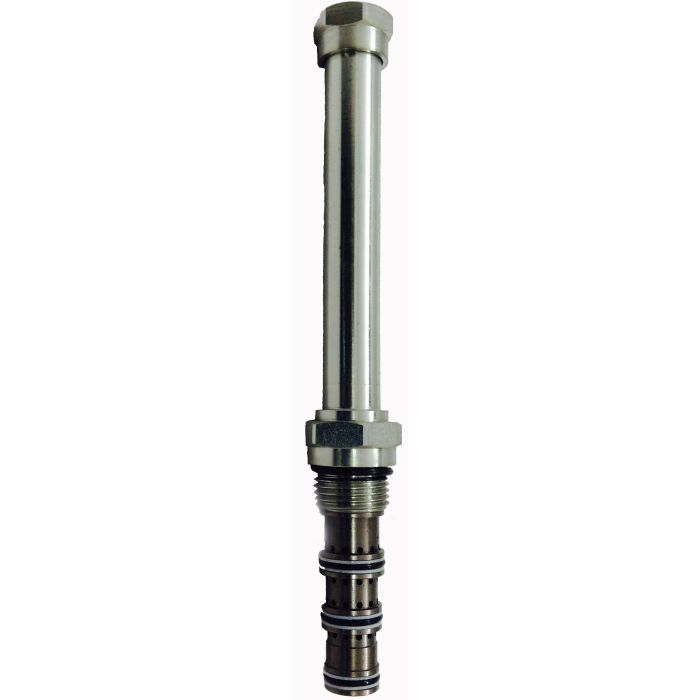

SV9A-10 Series 4-Way, 3-Position Solenoid Valves, Up To 8.9 GPM & 3000 PSI

Description & Features

Cartridge	Model SV9A-10* sold separately.
Coil	L Series, 30W. Sold separately, see
Group Description	This is a 4 way 3 position, direct acting, spool type solenoid valve and requires a machined cavity or housing for installation. This valve is ideal for small flow applications where an actuator needs to be moved in both directions. Hardened, ground and honed working parts to limit leakage. IP69K Tough coil compatibility. Continuously rated. Compact design with low pressure drop. Rated pressure on all ports.
Housing	Cavity size C-10-4, sold separately, see
Internal Leakage	Less than 7.3 in³/min past each land 3000 PSI differential
Note	Performance data is typical with fluid at 150 SSU and 120°F.
Operation	Closed Center: In the de-energized position, all ports are blocked. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1. Tandem Center: In the de-energized position, this valve allows flow from 3 to port 1 and blocks ports 2 and 4. When solenoid 1 is energized, flow is directed from port 3 to port 2 and from port 4 to port 1. When solenoid 2 is energized, flow is directed from port 3 to port 4 and from port 2 to port 1. Open Center: In the de-energized position all ports are open. When solenoid 'A' is energized flow is allowed from port 3 to port 4 and port 2 to port 1. When solenoid 'B' is energized flow is allowed from port 3 to port 2 and from port 4 to port 1. P Blocked, A&B Open to Tank: In the de-energized (center) position, port 1, port 2, and port 4 are open to each other while port 3 is blocked. When solenoid A is energized, flow is directed from port 3 to port 4 and from port 2 to port 1. When solenoid B is energized, flow is directed from port 3 to port 2 and from port 4 to port 1.
Pressure Rating	3000 PSI
Recommended Filtration	BS5540/4 Class 18/13 (25 micron or better)
Solenoid Connectors	Required on models with DIN 43650 connectors. See
Temperature Range	-22° to +248°F

Products

Model Number	Part Number	Circuit Type	Housing	Coil	Seal Material	Rated Flow	Price	Action
SV9A-10-N-B-0-0-00 SV9A-10 SeriesCartridge Valve	403AA01054A	Open Center	None	Not Included	Buna-N	8.9
SV9A-10-N-F-0-0-00 SV9A-10 SeriesCartridge Valve	403AA01058A	P Blocked, A&B Open to Tank	Not Included	Not Included	Buna-N	6.5

Product Questions & Answers (1)

Question by: Melvin H on Sep 21, 2025, 8:31 AM

Reckon this valve could handle running steady all day long in a hydraulic system?

Answer by: Customer Support on Sep 23, 2025, 8:11 AM

For continuous use, this 4-way, 3-position solenoid valve is rated to 3000 PSI on all ports. It's designed for applications where an actuator needs to move in both directions continuously.
