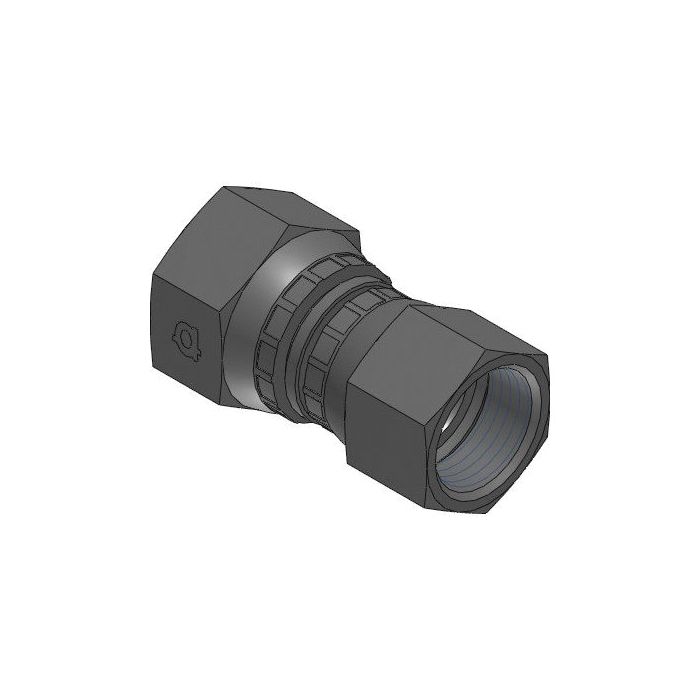

main product photo

Swivel Jic X Swivel Jic Union

Ask A Question

Description & Features

This steel Adaptall swivel union features JIC connections on both ends for secure and leak-free hydraulic connections. With a straight shape, this union connects 1/2" female JIC to 1/4" female JIC.

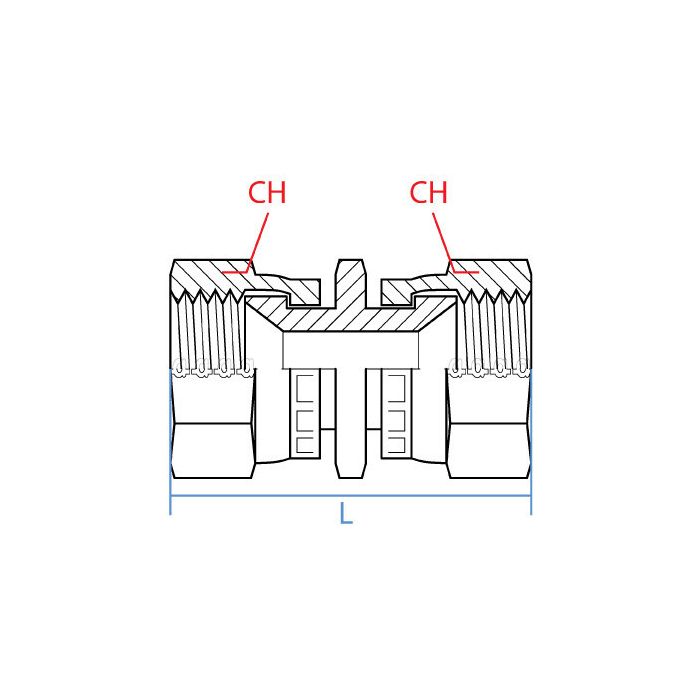

The Adaptall Swivel JIC X Swivel JIC Union offers a dependable solution for connecting hydraulic lines with different JIC fitting sizes. The width across flats measures 22mm on the 1/2" side and 14mm on the 1/4" side, with an overall length of 43mm.

SKU: 9026-08-04

Supplier Part Number (MPN): 9026-08-04

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel
Connection Type 1
Female JIC Swivel
Connection Type 2
Female JIC Swivel
Dimension Standards
SAE J514
Dimensions
40 mm L
Finish
Zinc-Plated
Fitting Type
Union
Material
Steel
Material Construction
Carbon Steel
Series
9026 Series
Thread Size
3/4-16 x 7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hubert S on Jan 31, 2026, 9:31 PM
Got a hydraulic line running 1/2" JIC on one end and 1/4" JIC on the other, this union gonna tie them two together without needing extra adapters in between?
Answer by: Customer Support on Feb 2, 2026, 11:04 AM
That's exactly what this fitting handles. One side threads onto a 1/2" female JIC connection with a 3/4-16 UNF thread, and the other picks up a 1/4" female JIC at 7/16-20 UNF. Both ends swivel, so you get some rotational flexibility when you're making up the connection, which helps a lot when the lines aren't sitting perfectly aligned. No extra adapters needed for that size combination.
