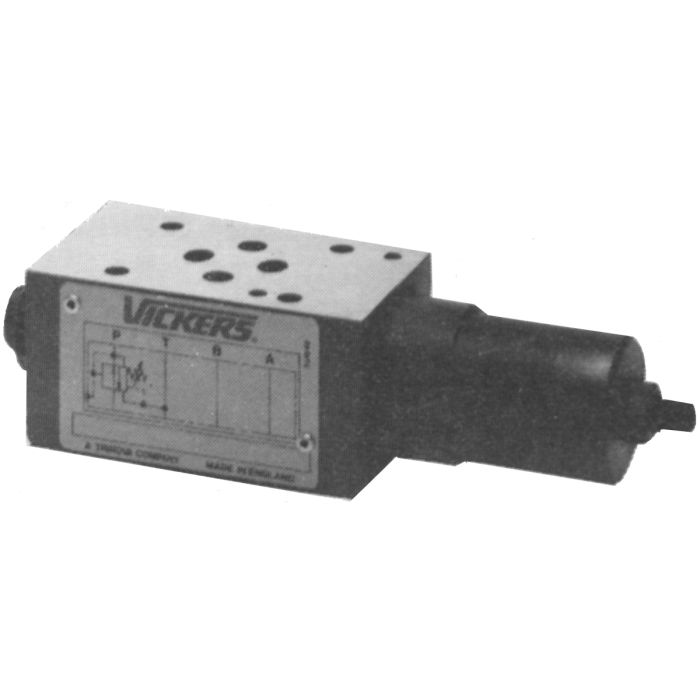

SystemStak Pressure Reducing Valves, NFPA-D03 Size

Description & Features

Group Description	The flow path is normally open and is closed as the pilot pressure exceeds the setting of the valve. Excessive pressure in the reduced pressure line is prevented by a pressure relieving function. Pressure adjustment options of screw & locknut or control knob (with or without keylock) are available.
Stacking Height	1.57 inches.

Model Number	Part Number	Key	Function	Adjustable Range	Adjustment Style	Adjuster Location	Gauge Port	Price	Action
DGMX2-3-PP-BW-S-40 SystemStak D03 Pressure Reducer	870039	A	Pressure Reduced in P Piloted from P	51-1000	Screw & Locknut	B Port End	SAE-4
