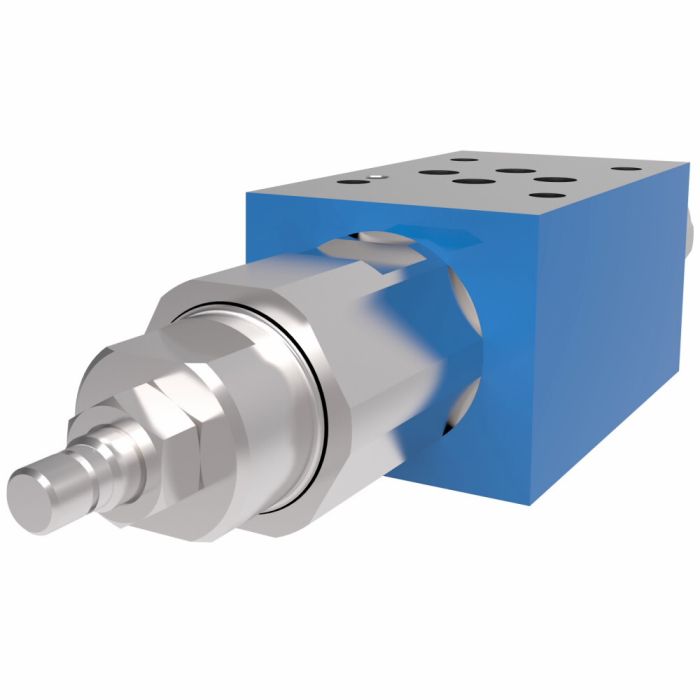

SystemStak Relief Valve, NFPA-D03 Size, Dual Relief, A to T, B to T, 75-4500 PSI Screw & Locknut Adjustment

The SystemStak Relief Valve, NFPA-D03 Size, Dual Relief, A to T, B to T, 75-4500 PSI Screw & Locknut Adjustment offers robust performance designed for high-pressure applications. Constructed from ductile iron, it features spheroidal graphite for enhanced durability and is NFPA fatigue proof rated at 4500 PSI. The valve's hardened steel internal parts and standard Vitonreg; seals ensure reliable operation within a fluid temperature range of -4deg;F to 176deg;F for petroleum oil and 50deg;F to 129deg;F for water-based fluids.

With an adjustable range of 75 to 4500 PSI and a screw & locknut adjustment style, this valve aids in precise control. It utilizes a standard interface, which reduces potential leaks and installation time, streamlining the integration process. The system's rugged design with large flow passages supports high flow ratings, making it suitable for demanding environments.

It has a stacking height of 1.57 inches and is recommended for applications where space-saving is crucial. The valve features no gauge port and its construction includes aluminum nameplates. For optimal performance, adhere to recommended filtration levels: ISO 20/16 for up to 3000 PSI and ISO 18/14 for over 3000 PSI. The mounting bolts are 10-24 grade 8 socket head cap screws, lubricated and torqued to 63-80 lb.in.

Model Number: DGMC2-3-AT-GW-BT-GW-41

Supplier Part Number: 871702
