Teflon Tube, Stainless Steel Braid Hose, Up To 3000 PSI

Description & Features

Application	Hot air, steam, compressor discharge and most chemical applications. Not recommended for steam-cold water cycling. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

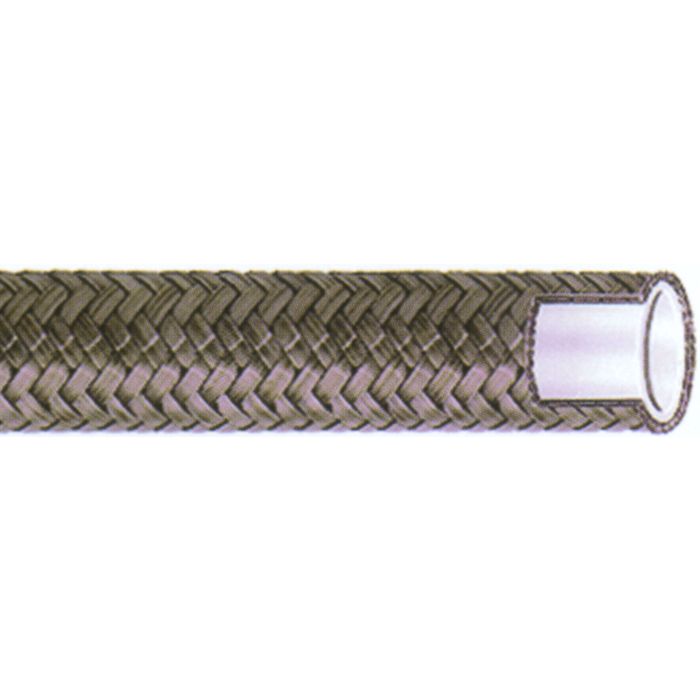

Construction	Extruded Teflon® tube with stainless steel single wire braid.
Note	Steam 200 psi at +388°F max. Engineering information is available for specific critical temperature requirements. Contact us for assistance. Maximum negative pressure shown for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger Teflon® hose is recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected.
Temperature Range	-100°F to +500°F.

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2807-10 Teflon Tube, Stainless Braid Hose	0.51	0.63	1500	6.5	28	Rolls Only
2807-3 Teflon Tube, Stainless Braid Hose	0.14	0.25	3000	1.5	28	Rolls Only
2807-4 Teflon Tube, Stainless Braid Hose	0.19	0.3	3000	2	28	Rolls Only
2807-20 Teflon Tube, Stainless Braid Hose	1.12	1.29	625	16	12	Rolls Only

Product Questions & Answers (1)

Question by: Howard S on May 5, 2025, 7:46 AM

What kind of stuff can this hose handle without breaking down? I'm thinking mostly chemicals here.

Answer by: Customer Support on May 7, 2025, 6:17 AM

Optimal chemical resistance is a key feature. The Teflon tube is suitable for most chemical environments, making it a good choice for a range of industrial applications.
