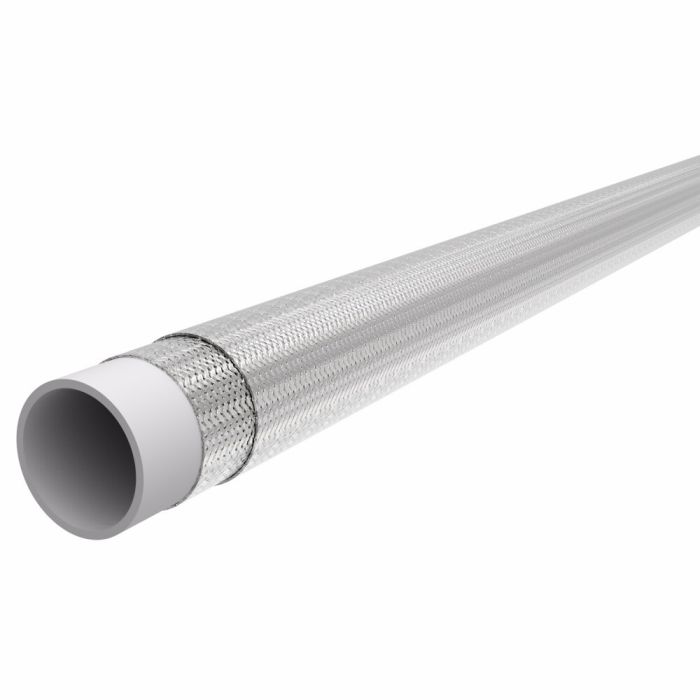

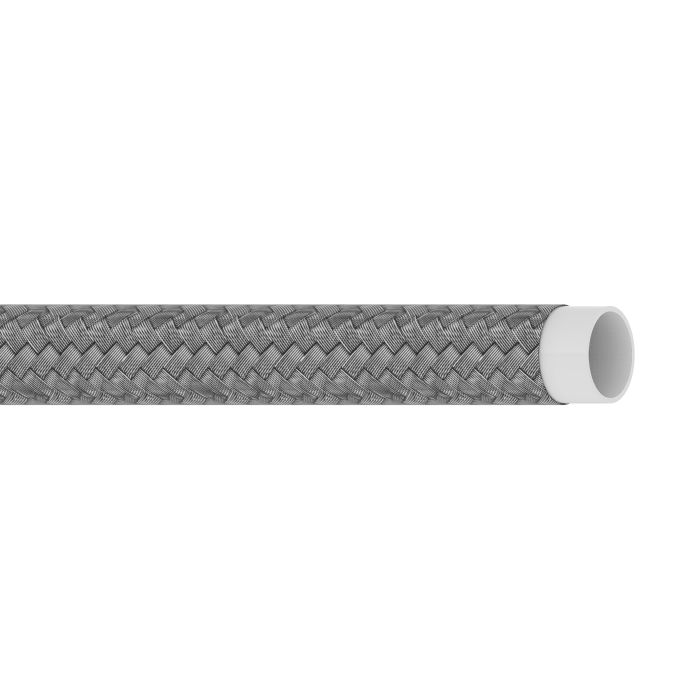

Teflon Tube, Stainless Steel Braid Hose, 0.51 Inch ID, Up to 1500.00 PSI

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) Teflon tube with stainless steel braid offers superior durability and reliability. This hose is designed for hot air, steam, compressor discharge, and various chemical applications. With a hose ID of 0.51 inches and OD of 0.63 inches, it ensures efficient fluid transfer while withstanding a maximum operating pressure of 1500 PSI.

Constructed from extruded Teflonreg; tube and a stainless steel single wire braid, this hose provides exceptional resistance to corrosive environments. It operates within a wide temperature range from -100deg;F to +500deg;F and features a minimum bend radius of 6.5 inches, making it suitable for versatile industrial applications.

Not suitable for steam-cold water cycling, this hose ensures optimal performance in high-temperature and challenging conditions. The vacuum service rating of 28 inches Hg further highlights its robust design, tailored for demanding use.

MPN: C1BJ79

Supplier Part Number: 2807-10

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.51
Hose O.D.
0.63
Maximum Operating Pressure
1500
Minimum Bend Radius
6.50
Reel Qty (ft)
Rolls Only
Supplier Part Number
2807-10
Alternate Part Numbers
Alternate Part Number C1BJ79, Alternate Part Number MI-03077588, Alternate Part Number MINO-00015X60030
Product Weight
1.39 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Teflon Tube, Stainless Steel Braid Hose, 0.51 Inch ID, Up to 1500.00 PSI

2807-10 Teflon Tube, Stainless Braid Hose

0.51

0.63

1500

6.5

28

Rolls Only

Teflon Tube, Stainless Steel Braid Hose, 0.14 Inch ID, Up to 3000.00 PSI

2807-3 Teflon Tube, Stainless Braid Hose

0.14

0.25

3000

1.5

28

Rolls Only

Teflon Tube, Stainless Steel Braid Hose, 0.19 Inch ID, Up to 3000.00 PSI

2807-4 Teflon Tube, Stainless Braid Hose

0.19

0.3

3000

2

28

Rolls Only

Teflon Tube, Stainless Steel Braid Hose, 1.12 Inch ID, Up to 625.00 PSI

2807-20 Teflon Tube, Stainless Braid Hose

1.12

1.29

625

16

12

Rolls Only

Product Questions & Answers (4)

Question by: Bobby O on May 7, 2025, 11:54 AM
got a line that sees hot air and a little steam now and then. is this hose meant for that kind of service?
Answer by: Customer Support on May 9, 2025, 9:48 AM
For hot air, steam, compressor discharge, and many chemical applications, this PTFE tube hose with a stainless single wire braid is a common fit. It is also rated for a wide temperature range from -100°F up to +500°F, which lines up with those hotter services.
Question by: Phil S on Nov 2, 2025, 3:47 PM
been lookin for a hose that can handle steam and compressor discharge without falling apart on me -- this one rated for that kind of service?
Answer by: Customer Support on Nov 4, 2025, 6:37 AM
Steam and compressor discharge are both listed applications for this hose, so yes, it holds up to those conditions. The extruded PTFE tube paired with a stainless steel single wire braid is what makes it viable in those environments. It handles temperatures from -100F all the way up to 500F and runs at up to 1500 PSI, so most compressor discharge setups fall well within that range. One thing worth knowing upfront is that it is not rated for steam-to-cold-water cycling. If the line sees rapid temperature swings between hot steam and cold water, this is not the right choice for that duty.
Question by: Warren W on Nov 1, 2025, 8:14 AM
What kind of stuff is this hose good for handling?
Answer by: Customer Support on Nov 2, 2025, 9:29 PM
It's designed to handle hot air, steam, and compressor discharge, along with a variety of chemicals.
Question by: Joyce B on Aug 20, 2025, 6:53 PM
got a tight turn to make, how sharp can i bend this hose without kinkin it
Answer by: Customer Support on Aug 21, 2025, 7:44 PM
Keep the bend radius at 6.5 inches or larger. That minimum bend radius is the point where you start risking damage or flow restriction if you try to curve it any tighter.
