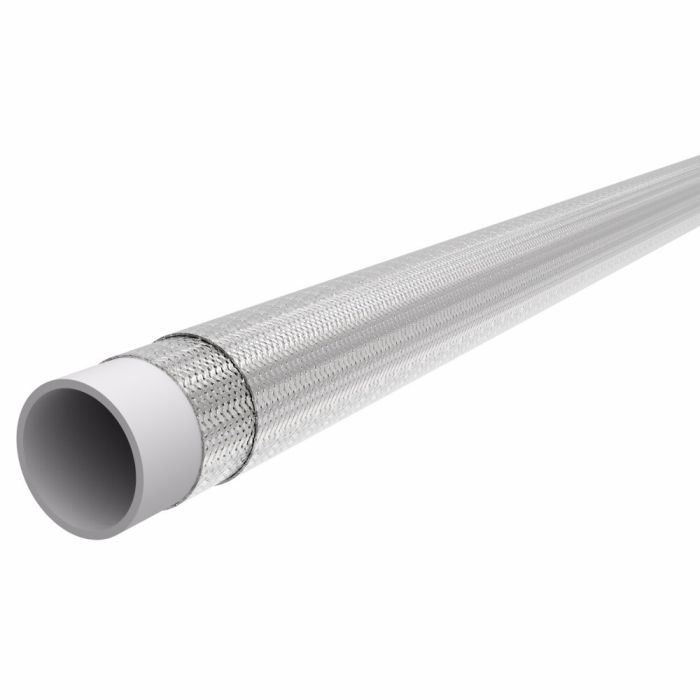

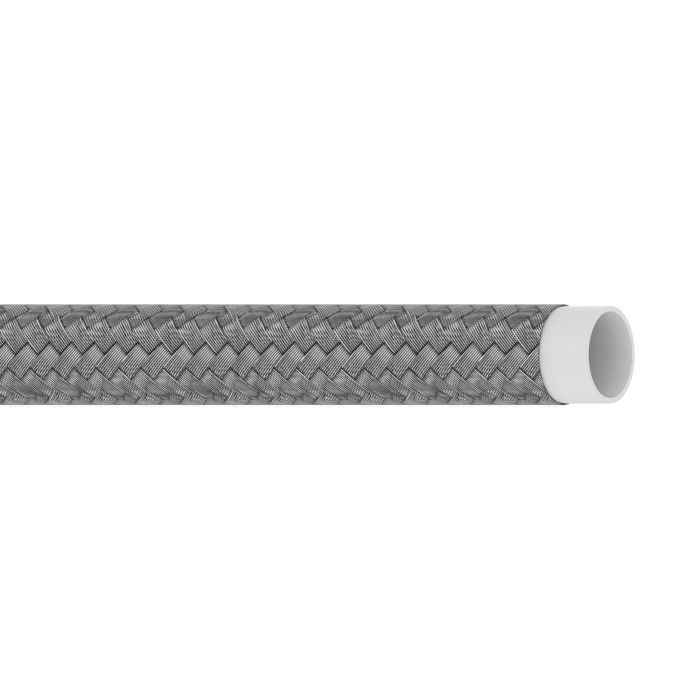

Teflon Tube, Stainless Steel Braid Hose, 0.14 Inch ID, Up to 3000.00 PSI

Ask A Question

Description & Features

The Eaton Aeroquip Teflon hose with a 0.14 inch inner diameter is engineered for demanding applications including hot air, steam, compressor discharge and various chemical transfers. Constructed with an extruded Teflonreg; tube and a durable stainless steel single wire braid, this hose ensures reliability under a maximum operating pressure of 3000 PSI.

It offers a wide temperature range from -100deg;F to +500deg;F, making it versatile for extreme conditions. With a minimum bend radius of 1.5 inches, it provides flexibility without compromising strength. The blue color ensures easy identification in industrial settings.

Suitable for various industrial sectors such as refrigeration, air conditioning, and hydraulic brake systems, this hose is not recommended for steam-cold water cycling. Adherence to general guidelines for selection, installation, and maintenance of hose assemblies is strongly advised.

MPN: 2807-3

Supplier Part Number: 2807-3

Specifications

Abrasion Resistance
Premium
Cover Material
Aramid
Dash Size
03
For Use With
Super Gem Hose Fittings
grp Construction
Extruded PTFE Tube, 1-Wire Braided Stainless Steel Reinforcement
Hose Color
Blue
Hose Type
Conductive
Impulse Cycle
150000
Inside Diameter
0.13 in
Length
1 ft
Nominal Size
3/16 in
Package Form
Bulk
Reinforcement
1-Wire Braided Stainless Steel Wire
Resistance Properties
Abrasion
Segment Code
C
Series
2807 Series
Tube Material
PTFE

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Dustin G on Aug 24, 2025, 8:51 AM
got a tight little run on a machine, how sharp can i bend this hose without kinkin it up?
Answer by: Customer Support on Aug 25, 2025, 9:24 AM
For routing, the minimum bend radius is 1.5 inches. Keeping your bend at or above that radius helps prevent kinking and protects the stainless single wire braid.
Question by: Rhonda P on Jun 30, 2025, 2:27 PM
What's the smallest radius I can bend this hose without messing it up?
Answer by: Customer Support on Jul 2, 2025, 6:18 AM
The minimum bend radius for this hose is 1.5 inches. Bending it tighter than that could damage it.
Question by: Lance H on May 25, 2025, 4:19 PM
Running this on a compressor discharge line that sees some pretty serious heat. What's the upper temp limit on this hose, and is it actually built for that kind of duty?
Answer by: Customer Support on May 27, 2025, 8:15 AM
Up to 500 degrees F is the rated ceiling on this one, so compressor discharge is well within its range. The extruded PTFE tube handles the heat without breaking down, and the stainless steel single wire braid keeps things from getting away from you pressure-wise. Rated to 3000 PSI, so thermal and pressure demands like that are exactly what it was built around.
