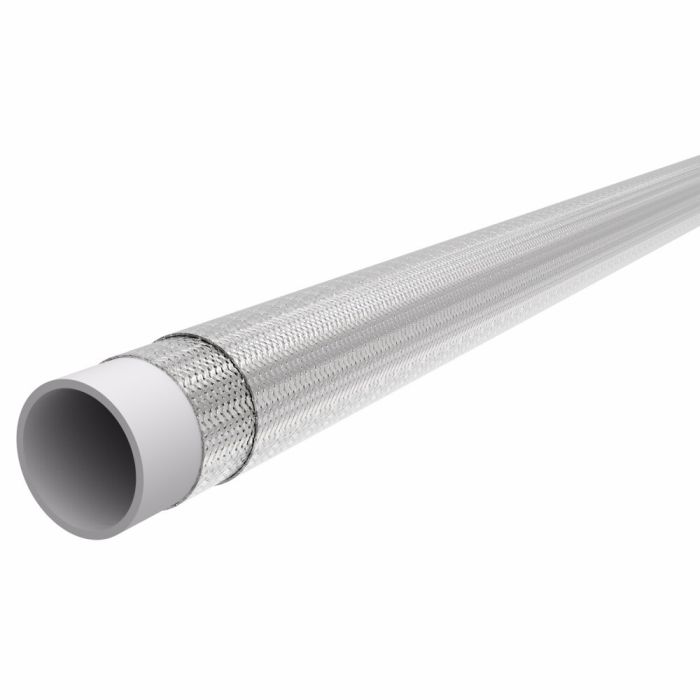

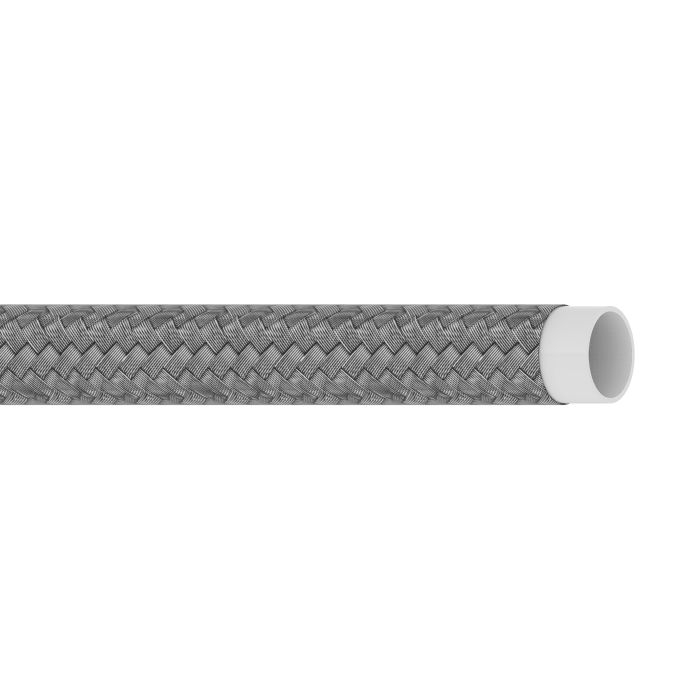

Teflon Tube, Stainless Steel Braid Hose, 0.19 Inch ID, Up to 3000.00 PSI

Ask A Question

Description & Features

Engineered for demanding applications, this high-performance hose features robust construction with an extruded Teflonreg; tube encased in a stainless steel single wire braid. The DANFOSS Power Solutions (II LLC Aeroquip) Teflon tube offers a 0.19 inch inner diameter, accommodating pressures up to 3000 PSI. This hose delivers superior performance in diverse settings, from hot air and steam to compressor discharge and many chemical environments.

Not recommended for steam-cold water cycling, it is crucial to follow guidelines for selection, installation, and maintenance. Operating efficiently across a temperature range of -100deg;F to +500deg;F, the hose ensures reliability and durability. With a minimum bend radius of 2 inches and a vacuum service rating of 28, it's designed to meet rigorous industry demands.

The hose's blue color ensures easy identification during installation and maintenance. Manufactured for special applications, it is packed in rolls for convenient handling and storage.

Supplier Part Number: 2807-4

MPN: C1BJ84

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Premium
Cover Material
Aramid
Dash Size
04
grp Construction
Extruded PTFE Tube, 1-Wire Braided Stainless Steel Reinforcement
Hose Color
Blue
Hose Type
Conductive
Inside Diameter
3/16 in
Nominal Size
1/4 in
Package Form
Bulk
Reinforcement
1-Ply Braided Stainless Steel Wire
Resistance Properties
Abrasion
Segment Code
A
Series
2807 Series
Tube Material
PTFE

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Teflon Tube, Stainless Steel Braid Hose, 0.51 Inch ID, Up to 1500.00 PSI

2807-10 Teflon Tube, Stainless Braid Hose

0.51

0.63

1500

6.5

28

Rolls Only

Teflon Tube, Stainless Steel Braid Hose, 0.14 Inch ID, Up to 3000.00 PSI

2807-3 Teflon Tube, Stainless Braid Hose

0.14

0.25

3000

1.5

28

Rolls Only

Teflon Tube, Stainless Steel Braid Hose, 1.12 Inch ID, Up to 625.00 PSI

2807-20 Teflon Tube, Stainless Braid Hose

1.12

1.29

625

16

12

Rolls Only

Product Questions & Answers (4)

Question by: Troy W on Feb 25, 2026, 9:32 AM
got a tight spot to snake this line through. what’s the minimum bend radius on this hose?
Answer by: Customer Support on Feb 27, 2026, 6:03 AM
Minimum bend radius is 2 inches, so you will want to keep any routing at or above that to avoid kinking or stressing the Teflon tube and braid.
Question by: Ross P on Sep 20, 2025, 5:05 PM
What kind of temperatures can this hose handle?
Answer by: Customer Support on Sep 22, 2025, 6:47 AM
This Teflon tube with stainless steel braid is good for temperatures ranging from -100°F to +500°F.
Question by: Wes B on Oct 5, 2025, 9:28 PM
hose is rated to 3000 PSI but what kind of temps can it actually handle before it starts breaking down?
Answer by: Customer Support on Oct 7, 2025, 8:00 AM
Rated for continuous use from -100°F up to +500°F, so it covers just about everything from cold storage lines to hot process hydraulic lines without issue. That range makes it a solid pick for compressor discharge, hot air transfer, and chemical lines where temps swing hard in either direction.
Question by: Shane J on Sep 3, 2025, 3:56 PM
got a tight spot to route this line, how sharp can i bend it without kinkin it
Answer by: Customer Support on Sep 5, 2025, 6:48 AM
For routing, the minimum bend radius on this hose is 2 inches. Keeping bends at or above that radius helps it hold shape and avoid stressing the Teflon tube and stainless braid.
