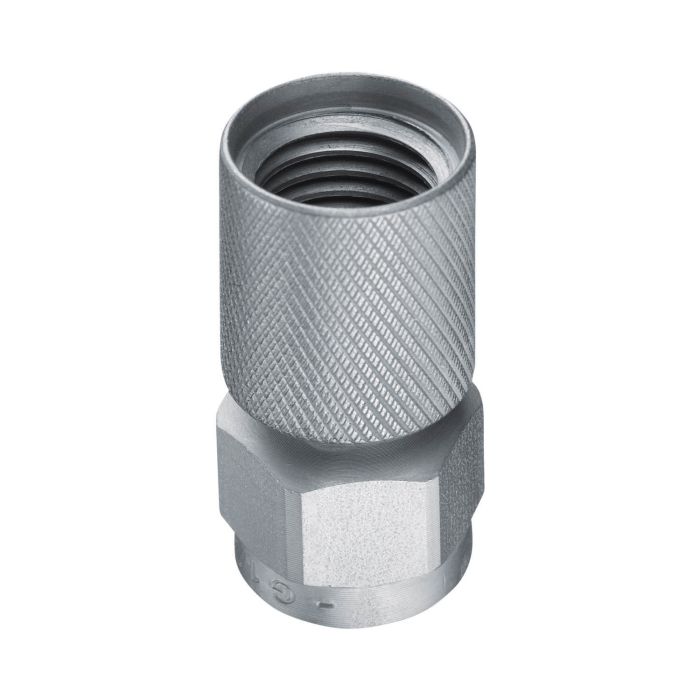

STAUFF Gauge Adapter. Steel. Direct GAUG

Description & Features

The STAUFF Gauge Adapter is engineered for critical pressure monitoring venting and sampling tasks. Featuring steel construction with a stainless-steel ball and Buna-N Viton or EPDM seals it operates effectively across varied temperature ranges.

Designed to sustain maximum working pressures of up to 5800 PSI for Test 10 Test 12 and Test 20 hoses and 9000 PSI for Test 15 hoses this adapter ensures reliable performance under high pressure.

Simple connections to measurement control and switching devices are facilitated by the leakproof design that seals before the connection is opened. The self-locking metal cap reduces contamination risks ensuring hydraulic system integrity.

Suitable for hydraulic oils and other mineral-based fluids its compatibility with various fluids should be verified based on the seal material. The adapter also supports connections under pressure up to 5800 PSI and 9000 PSI depending on hose type.

MPN: 1210026018

Supplier Part Number: 1210026018

Specifications

Alternate Part Numbers Alternate Part Number C1KW54, Alternate Part Number MI-08752092, Alternate Part Number MINO-02491X63336, Alternate Part Number SMD-20-1/4NPT-W3, Alternate Part Number SMD20-1/4-NPT-C6F, Alternate Part Number SMD20-1/4-NPTC6F, Alternate Part Number SMD20-1/4NPT-C6F, Alternate Part Number SMD201/4NPTC6F, Alternate Part Number SMD201/4NPTW3	Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Supplier Part Number 1210026018	Product Weight 0.10 lbs

Similar Products

Model Number	Product Description	Price	Action
1210026063 Test Hose / Point	SMK20-9/16UNF-VE-C6F.
1210026281 Test Hose / Point	SMK-20-JIC3/8-V-K-W3.
1210021721 Test Hose / Point	STAUFF TEST POINT HOSE 1000MM.
SMS20/U1/4-3000M Test Hose / Point	STAUFF TEST POINT HOSE FEMALE 1/4 JIC X.
1210026029 Test Hose / Point	SMK-20-1/4NPT-V-D-W3.

Product Questions & Answers (2)

Question by: Jimmy M on Jun 1, 2025, 4:30 PM

What kinda fluids can this thing handle? I mainly use hydraulic oil.

Answer by: Customer Support on Jun 3, 2025, 10:14 AM

Suitable for hydraulic oils and other mineral-based fluids, just make sure to check the seal material for compatibility.

Question by: Jean M on Nov 1, 2025, 3:45 PM

what seal options does this adapter come with, and does the temperature range vary between em?

Answer by: Customer Support on Nov 3, 2025, 6:10 AM

Three seal materials are available: Buna-N, Viton, and EPDM. Buna-N handles a range of -4°F to 195°F, which covers most standard shop and field conditions. Viton stretches that upper limit considerably, rated up to 392°F, making it the better pick for high-heat applications. EPDM goes the other direction on the cold end, rated down to -40°F, with an upper limit of 302°F. All three start at or above -4°F on the warm side, so if you're working in extreme cold, EPDM is the one to reach for.
