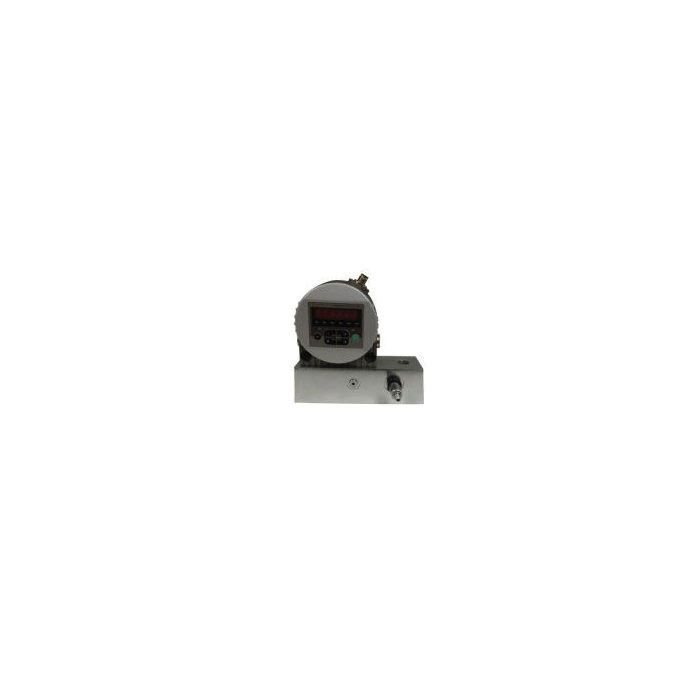

main product photo

SCHROEDER TESTMATE CONTAMINATION

Ask A Question

Description & Features

Continuous solid contamination monitoring in a compact 4-inch diameter housing, the Schroeder TestMate Contamination Monitor uses an optical sensor to measure particles in four size ranges: >4, >6, >14, and >21 microns. Results are reported as ISO 4406:1999 or SAE AS 4059(D) contamination codes, output via 4–20mA analog signal or optional 0–10V analog. RS485 communication is also supported for use with FluMos software.

Sensor flow rate ranges from 30 to 300 ml/min, with a power requirement of 9–36 VDC and a maximum draw of 3 watts. Compatible with standard mineral fluids and phosphate esters, the unit supports pipe or wall mounting, and both the display/keypad orientation and inlet/outlet ports are configurable to suit installation requirements.

SKU: TCM-FC

Supplier Part Number (MPN): 7623773

Alternate Part Numbers: C1MC81, CS1220-A-0-0-0-1/-K

Specifications

Brand
Schroeder Industries
Connection Type
Threaded
Dimensions
4 in Dia
grp Description
The Testmate is Among the Newest Generation of Particle Monitors that Continuously Measure Solid Contamination in Fluid. Enclosed in a 4 in Dia Case, The TCM Utilizes an Optical Sensor and Measures Particles in Four Sizes: >4, >6, >14 and >21 Microns. Mea
grp Electrical Specifications
4 to 20 mA Analog Output (Max Burden 300), 0 to 10 V Output (Min Load Resistor 820) Limit Switching Output (Power MOSFET), Max Current 1.5 A
Material
FKM
Micron Rating
4 um, 6 um, 14 um, 21 um
Specifications
9 to 36 VDC Supply Voltage
Suitable For Use With
TestMate®TCM Series Contamination Monitors

Product Questions & Answers (1)

Question by: Kent H on Mar 31, 2026, 2:33 PM
what all fluid types work with this monitor? got mineral oil running through our system and want to make sure before we order
Answer by: Customer Support on Apr 2, 2026, 8:32 AM
Mineral-based hydraulic fluids are compatible, and so are phosphate esters. If your system runs standard mineral oil, you're good to go with this unit.
