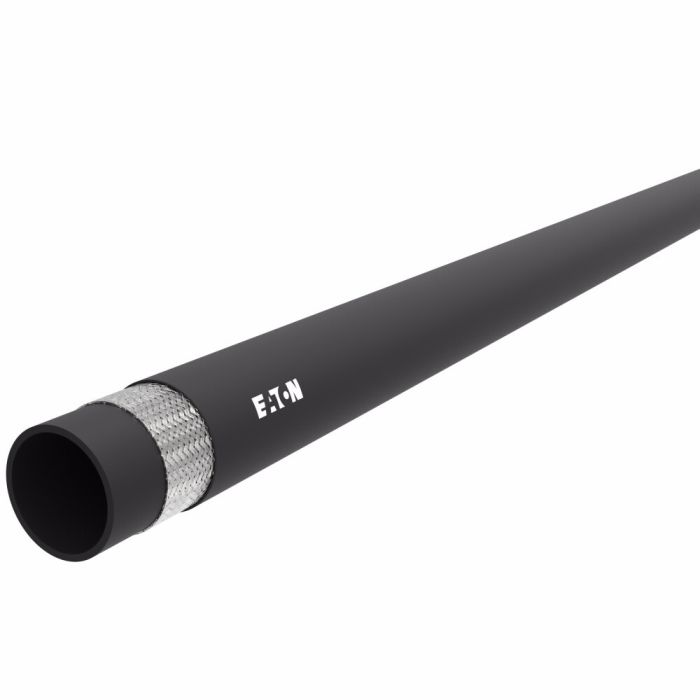

Thermoplastic Nylon Core Black Cover SAE 100R8 (SAE 100R7 Dimensions) Hose, 0.50 Inch ID, Up To 3500.00 PSI

Ask A Question

Description & Features

This Thermoplastic Nylon Core Black Cover SAE 100R8 Hose offers a .50 inch internal diameter with a maximum operating pressure of 3500 PSI.

Designed for general hydraulics applications as well as high pressure gas and chemical transfer, this hose features a nylon core tube, braided high tensile Aramid fiber reinforcement, and a perforated polyurethane cover.

This hose is suitable for use in machine tools, mobile equipment, agricultural equipment and marine steering systems. It is designed to provide 100R8 hose performance within 100R7 hose dimensions for fitting versatility, and offers low volumetric expansion.

It withstands temperatures from -40°F to 212°F (or up to 150°F when used with water-based or fire-resistant fluids).

SKU: 3800-08003

Supplier Part Number (MPN): 3800-08-250BX

Specifications

Abrasion Resistance
28
Color
Black
Conductivity
30
Cover Material
Polyurethane
Cover Style
Perforated
Dash Size
-8
Die Used
4540-308
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.50
Hose O.D.
0.84
Maximum Operating Pressure
3500
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-40
Package Qty.
250 ft random
Reinforcement Material
Aramid
Supplier Part Number
3800-08-250BX
Tube Material
Nylon
Product Weight
0.54 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Package Qty. Die Used Price Action
Thermoplastic Nylon Core Black Cover SAE 100R8 (SAE 100R7 Dimensions) Hose, 0.19 Inch ID, Up To 5000.00 PSI

3800-03003 Thermoplastic SAE100R8 Hose

0.1875

0.432

5000

1.5

250 ft random

4540-303

Thermoplastic Nylon Core Black Cover SAE 100R8 (SAE 100R7 Dimensions) Hose, 0.25 Inch ID, Up To 5000.00 PSI

3800-04003 Thermoplastic SAE100R8 Hose

0.25

0.532

5000

2

250 ft random

4540-304

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Cody D on May 28, 2025, 7:46 PM
reckon this hose would work alright for hydraulic lines on my tractor? Pressure on the system maxes out around 3000 PSI.
Answer by: Customer Support on May 30, 2025, 6:03 AM
For hydraulic applications with pressure up to 3500 PSI, this hose ought to do the job just fine. It's made for general hydraulics, so it should hold up well on your tractor.
