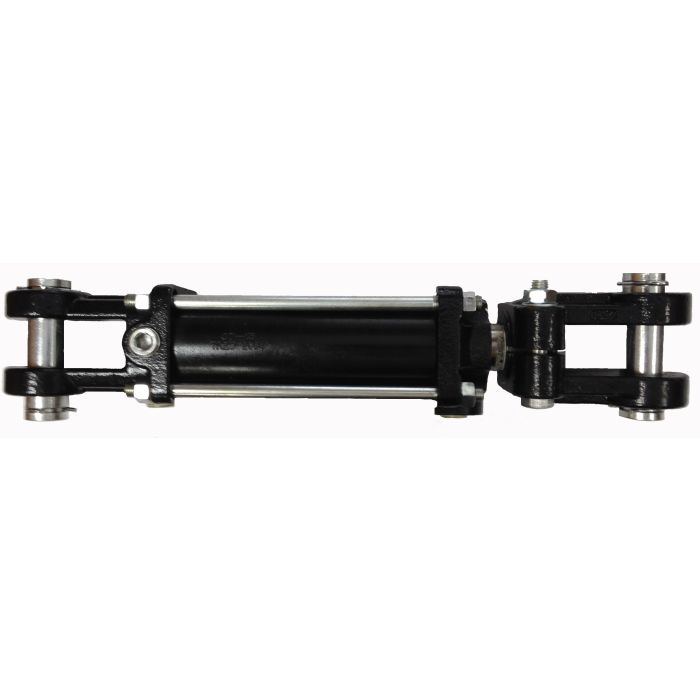

main product photo

Tie Rod Hydraulic Cylinder, 3.00 Inch Bore, 1.25 Inch Rod Diameter, 18.00 Inch Stroke, 1/2 NPT Ports

Ask A Question

Description & Features

This tie rod hydraulic cylinder features a 3.00-inch bore and an 18.00-inch stroke, offering reliable performance in demanding applications. Designed with 1/2 NPT ports, this double-acting cylinder is suited for a wide range of hydraulic systems.

Constructed with durable ductile iron castings and lighter weight design, this Tie Rod Hydraulic Cylinder is pressure-rated to 2340 PSI. It includes a 1.25-inch rod diameter and a 1-inch pin diameter. These cylinders are ASAE compatible for stroke control.

SKU: 3018TX-90BLACK

Supplier Part Number (MPN): 648846

Alternate Part Numbers: C1MJ40

Specifications

Bore
3
Brand
Monarch Industries Inc
Brand
Monarch Industries
Pack Size
1.00
UOM
EA
Pin Diameter
1
Pin to Pin Extended
46.25
Pin to Pin Retracted
28.25
Ports
1/2 NPT
Ports
1/2 NPT
Pressure Rating
2340
Rated Load
16560
Rod Diameter
1.25
Stroke
18
Supplier Part Number
648846
Alternate Part Numbers
Alternate Part Number C1MJ40
Product Weight
28.10 lbs
