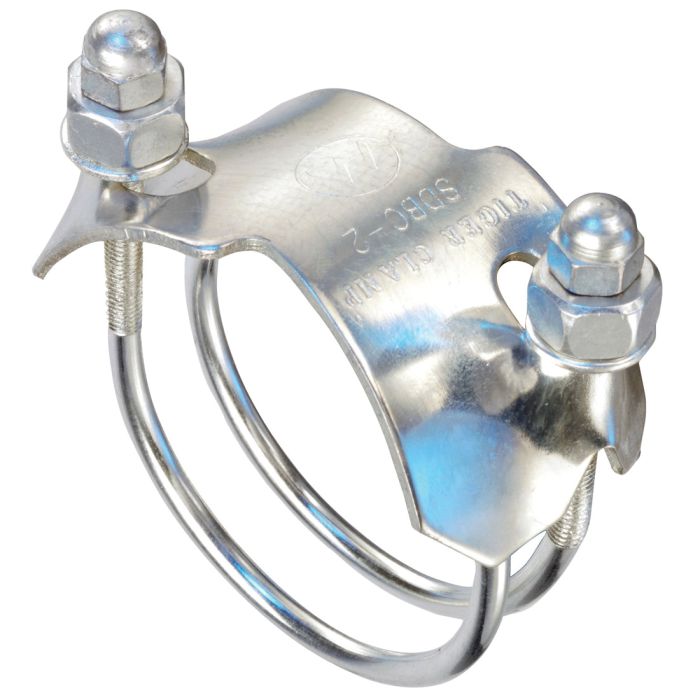

KURIYAMA 6 IN Spiral Double BOLT Clamp

Description & Features

The Kuriyama 6 In Spiral Double Bolt Clamp by Kuriyama of America Inc is designed specifically for use on Tigerflex hoses with a convoluted cover. The clamp is engineered for a counter-clockwise spiral only. For hoses with an internal diameter between 1-1/2 and 4 inches a single clamp offers sufficient holding power at each end. For diameters 5 inches and larger it is recommended to use two clamps per end.

The spiral double bolt design ensures a secure fit enhancing the durability and performance of the hoses. Threaded protective caps are added to prevent injuries during installation and handling. This clamp is ideal for use with Tigerflex convoluted hoses including Series 2001 2020 BW CG F G GC GC-C H J JG K PF S UBK W WBS WE WG WH WST WSTF WT WU and Ureflex-1 Ureflex-2 Urevac-3.

Mpn: C1GC67

Supplier Part Number: SDBC-6

Specifications

Brand KOA Couplings™	Finish Zinc-Plated	grp Caution Proper Evaluation of Holding Power for Clamp Must be Determined for Each Individual Installation	Locking Style Bolt	Material Carbon Steel	Nominal Size #06	Series SDBC Series	Suitable For Use With Tigerflex Counterclockwise Spiral Suction Hose

Product Questions & Answers (4)

Question by: Dwayne J on Feb 18, 2026, 7:39 AM

how many of these clamps do I need for a 6 inch tigerflex hose on each end?

Answer by: Customer Support on Feb 20, 2026, 6:19 AM

For 5 inch ID hose and larger, two clamps per end are recommended. So on a 6 inch hose, you'd want to plan on a pair at each connection point rather than relying on just one. That's straight from the application guidance for this clamp size.

Question by: Eddie H on Apr 4, 2025, 7:42 PM

What size hoses will this clamp work with?

Answer by: Customer Support on Apr 6, 2025, 6:35 AM

These TigerClamp spiral double bolt clamps are recommended for use on Tigerflex convoluted hoses, including Series 2001, 2020, BW, CG, F, G, GC, GC-C, H, J, JG, K, PF, S, UBK, W, WBS, WE, WG, WH, WST, WSTF, WT, and WU. They're also good for use on Ureflex-1, Ureflex-2, and Urevac-3 hoses.

Question by: Ronnie C on Jul 5, 2025, 9:48 PM

i’ve got a Tigerflex hose with that ribbed, spiral cover. is this clamp meant for that kind, or just smooth hose

Answer by: Customer Support on Jul 7, 2025, 6:17 AM

Made for Tigerflex hoses that have a convoluted cover with a counter-clockwise spiral. It is not presented as a general clamp for smooth-cover hose in this product info.

Question by: Earl E on Oct 31, 2025, 5:35 PM

Will this clamp work with any Tigerflex hose, or only certain ones?

Answer by: Customer Support on Nov 1, 2025, 8:15 PM

These clamps are recommended for use on quite a few Tigerflex convoluted hoses, including series 2001, 2020, BW, CG, F, G, GC, GC-C, H, J, JG, K, PF, S, UBK, W, WBS, WE, WG, WH, WST, WSTF, WT, and WU, as well as Ureflex-1, Ureflex-2, and Urevac-3.
