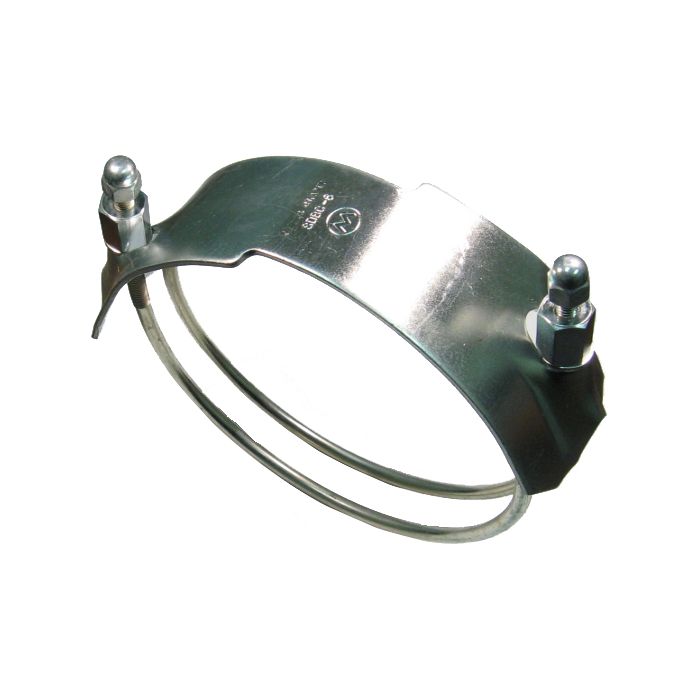

TigerClamp Spiral Double Bolt Clamps

Description & Features

Application	For use on Tigerflex® hoses with convoluted cover (counter-clockwise spiral only). For adequate holding power, a single clamp may be used on each end for 1-1/2 to 4 inch ID hose. Two clamps are recommended for each end on 5 inch ID and larger. Threaded protective caps help prevent injury.
CAUTION	Proper evaluation of holding power for clamp must be determined for each individual installation.
For Use With	TigerClamp™ Spiral Double Bolt Clamps are recommended for use on the following Tigerflex® convoluted hoses: Series 2001, 2020, BW, CG, F, G, GC, GC-C, H, J, JG, K, PF, S, UBK, W, WBS, WE, WG, WH, WST, WSTF, WT, WU. Also recommended for use on Ureflex-1, Ureflex-2, Urevac-3.
Note	Use of pneumatic air tools for tightening purposes is NOT recommended due to potential clamp damage caused by excess torque. Both hex nuts should be tightened equally to prevent possible leakage. If sockets are used, they should be deep well sockets.

Model Number	Product Description	Price	Action
SDBC-6 TigerClamp Double Bolt Clamp	KURIYAMA 6 IN SPIRAL DOUBLE BOLT CLAMP
