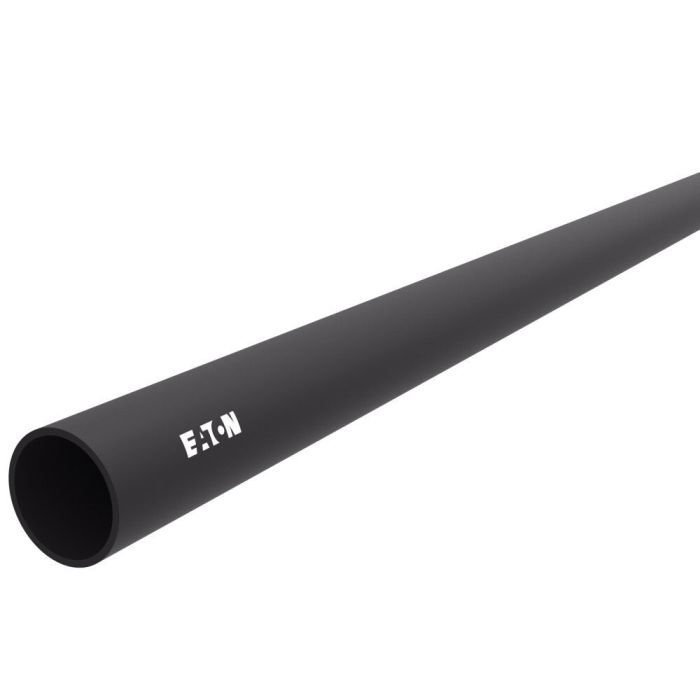

TP160 Polyamide "Nylon 11" Tubing, Inch OD, 0.04 Inch Wall Thickness, Up To 250.00 PSI

Ask A Question

Description & Features

Engineered for durability and versatility, the TP160 Polyamide "Nylon 11" Tubing is ideal for liquid and gas applications. With an outer diameter of 0.25 inches and a wall thickness of 0.04 inches, this tubing offers a precise fit for instrumentation, lubrication, and air lines. Its premium abrasion resistance makes it suitable for demanding environments, from chemical processing to low-pressure hydraulics.

Constructed from extruded Nylon 11 and Nylon 12, the tubing can withstand pressures up to 250 PSI and temperatures ranging from -40°F to 200°F. The natural color and UV-stabilized reinforcement material ensure longevity in both indoor and outdoor settings. The TP160 series by Eaton Aeroquip is known for its conductive properties, making it reliable for diverse industrial applications.

SKU: TP16004NA-100

Supplier Part Number (MPN): TP16004NA-100

Alternate Part Numbers: C1KN62

Specifications

Abrasion Resistance
28
Application
Liquid and gas.
Color
Natural
Conductivity
30
Construction
Extruded
Cover Material
Polyamide
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Lay Line Style
Ink Jet
Maximum Working Pressure
250
Minimum Bend Radius
1.25
Minimum Bend Radius
1.25
Minimum Working Temperature
-40
Package Qty.
100
Reinforcement Material
UV Stabilized
Supplier Part Number
TP16004NA-100
Tube Material
Nylon 11, Nylon 12
Tube O.D.
0.25
Tube O.D.
0.25
Wall Thickness
0.04
Alternate Part Numbers
Alternate Part Number C1KN62, Alternate Part Number MINO-00015X15678
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number Tube O.D. Wall Thickness Maximum Working Pressure Burst Pressure Minimum Bend Radius Package Qty. Price Action
TP160 Polyamide

TP16004NA-100 TP160 Polyamide Tubing

0.25

0.04

250

1.25

100

TP160 Polyamide

TP16005NA-100 TP160 Polyamide Tubing

0.3125

0.04

250

2

100

Product Questions & Answers (2)

Question by: Duane G on Nov 22, 2025, 10:58 AM
tubing says it goes down to -40°F -- we run lines outside through the winter and need something that ain't gonna get brittle on us. this hold up at those low temps in actual use?
Answer by: Customer Support on Nov 23, 2025, 2:00 PM
At -40°F it stays flexible enough for outdoor runs. The Nylon 11 and Nylon 12 construction holds its integrity at that temperature, and the UV-stabilized material means sun exposure isn't going to break it down either. Rated from -40°F all the way up to 200°F, so seasonal swings between cold winters and hot summers fall well within what this tubing handles.
Question by: Danny S on Jun 7, 2025, 8:59 PM
What kinda stuff is this tubing good for, generally speaking?
Answer by: Customer Support on Jun 9, 2025, 7:22 AM
This TP160 tubing works well in liquid and gas applications. Think instrumentation, lubrication, air lines, plus chemical and oil processing. It can also handle low-pressure hydraulics.
