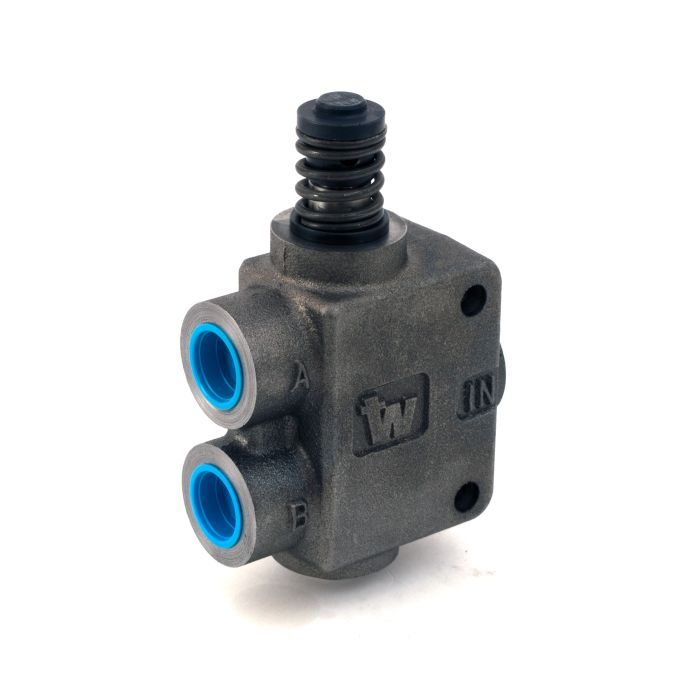

main product photo

SV80 Series Diverter Valve SV80-A-J-S | TSK2757-24

Ask A Question

Description & Features

The WEBTEC SV80 Series diverter valve is a two-position directional control valve designed to route hydraulic flow between two separate lines, switching fully from one to the other without passing through a neutral state. Rated to 80 L/min (21 US gpm) and a maximum pressure of 210 bar (3000 psi), the SV80-A-J-S suits a broad range of mobile and industrial hydraulic circuits.

Cast iron construction keeps the body robust under pressure, while stainless steel internals and NBR/PTFE seals provide reliable service across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). Compatibility with mineral oils conforming to ISO 11158 covers the majority of standard hydraulic fluids. Connections are 1/2" BSPP, and at 1.5 kg the valve is compact enough for space-constrained installations. Ambient service conditions extend from -30 to 50 °C (-22 to 122 °F).

SKU: TSK2757-24
Supplier Part Number (MPN): SV80-A-J-S

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK2757-24
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Cast Iron
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
Up to 21
Flow Range (L/min)
Up to 80
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
1.5 kg, 3.3 lbs
Internal Materials
Stainless Steel
Maximum Rated Flow
80 L/min, 21 US gpm
Max Rated Pressure
210 bar, 3000 psi
Net Weight
1.5 kg, 3.3 lbs
Porting
1/2” BSPP
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Darryl M on Jul 8, 2025, 7:11 PM
valve says no neutral position, what exactly does that mean for how it operates?
Answer by: Customer Support on Jul 10, 2025, 1:32 PM
At any given time, flow is being directed to one of the two outlet lines. There's no center position where flow stops or bypasses both. When you shift the valve, it switches the flow path from one line to the other. That's the whole point of this style of diverter, it's either one way or the other, not somewhere in between.
Question by: Rex C on Jan 11, 2026, 7:29 PM
How can I tell if the SV80-A-J-S diverter valve will fit with my existing setup?
Answer by: Customer Support on Jan 12, 2026, 9:33 PM
To ensure a good fit, check that your system uses a 1/2” BSPP porting connection, as that's what this valve is designed for. Also, confirm that your hydraulic system can handle up to 80 L/min flow and 210 bar pressure to match the valve's specifications.
