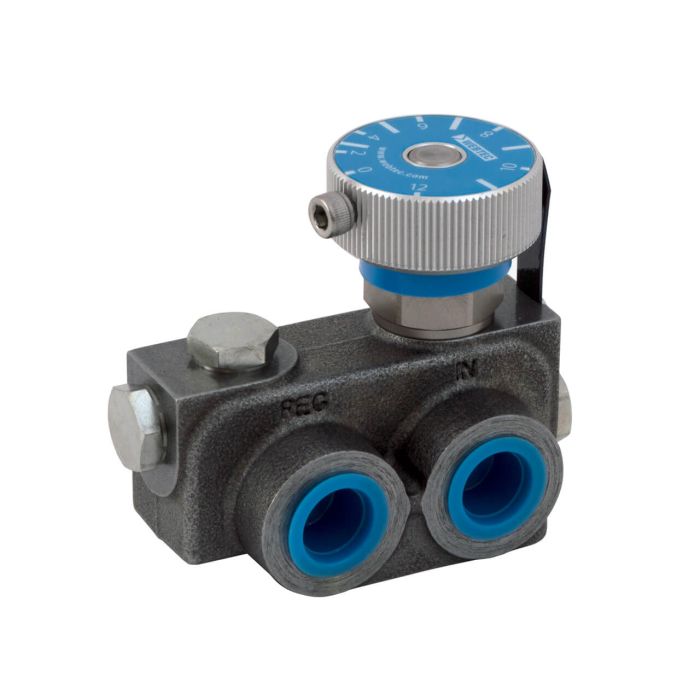

VFD50 Series Variable Priority Flow Dividers VFD50-15-T SINGLE PACK | TSK5453-10

Part of the VFD50 Series, the WEBTEC VFD50-15-T is a variable priority flow divider suited to applications where adjustable hydraulic flow distribution is required. It handles flows up to 15 L/min (3.9 US gpm) at pressures up to 250 bar (3600 psi), with a continuously adjustable range starting from zero, giving operators direct control over actuator speed without additional valving.

The unit is built around a cast SG Iron body with steel components, hardened steel internals, and a high carbon spring steel mechanism, providing durability under sustained hydraulic load. NBR seals support compatibility with mineral oils to ISO 11158 across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). Porting is 3/8" BSPP. At 0.8 kg, the compact form factor suits space-constrained installations. Ambient service temperature is rated from -30 to 50 °C (-22 to 122 °F).

SKU: TSK5453-10
Supplier Part Number (MPN): VFD50-15-T
