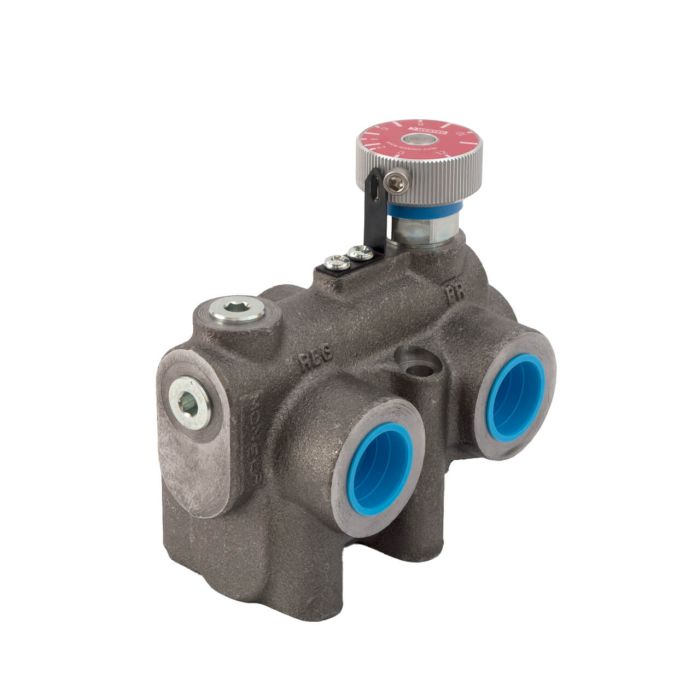

main product photo

RV Series Variable Priority Flow Dividers with Built in Relief RV2FV2V050G | TSK6147-022

Ask A Question

Description & Features

The RV Series WEBTEC variable priority flow divider offers adjustable flow splitting with an integrated relief valve, making it well suited to hydraulic systems where actuator speed control and circuit protection are both required. Model RV2FV2V050G handles flows up to 19 L/min (5 US gpm) at pressures to 250 bar (3,630 psi), covering a broad range of mobile and industrial hydraulic applications.

The cast iron body incorporates an aluminium adjustment knob and steel internal components, with NBR seals rated across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). Porting is via 1-1/16"-12UN #12 SAE ORB connections, and the unit is compatible with mineral oils to ISO 11158, with alternative fluids available on request. At 2.9 kg (6.4 lbs), it is a compact unit for the flow and pressure ratings it delivers.

SKU: TSK6147-022
Supplier Part Number (MPN): RV2FV2V050G

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6147-022
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Cast Iron, Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
0 - 5
Flow Range (L/min)
0 - 19
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2.9 kg, 6.4 lbs
Internal Materials
Steel components
Maximum Rated Flow
19 L/min, 5 US gpm
Max Rated Pressure
250 bar, 3630 psi
Net Weight
2.9 kg, 6.4 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Rod P on Jun 27, 2025, 10:51 PM
what kind of port does the RV2FV2V050G use, and will it thread into a standard SAE manifold block?
Answer by: Customer Support on Jun 29, 2025, 3:46 PM
Porting on this unit is 1-1/16"-12UN #12 SAE ORB, so yes, it threads directly into any standard SAE O-ring boss port of that size. Pretty common fitment on manifold blocks used in mobile and industrial hydraulic circuits. Just make sure you've got the right O-ring seated before torquing it down.
Question by: Neal T on Sep 21, 2025, 8:18 PM
How much pressure can the RV2FV2V050G handle?
Answer by: Customer Support on Sep 23, 2025, 7:30 AM
This flow divider can manage up to 250 bar or 3630 psi, making it suitable for various industrial hydraulic systems.
