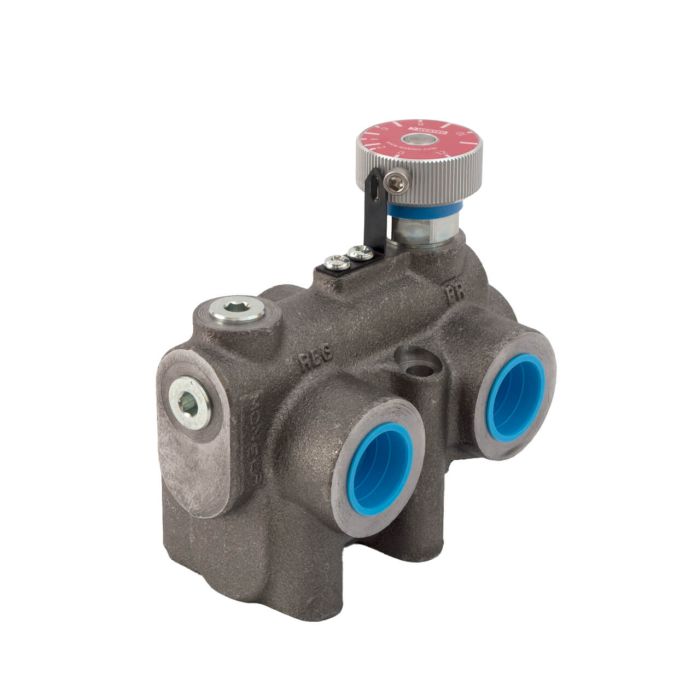

main product photo

RV Series Variable Priority Flow Dividers with Built in Relief RV2FV2V200G | TSK6147-025

Ask A Question

Description & Features

The RV2FV2V200G is a variable priority flow divider from WEBTEC's RV Series, combining adjustable flow division with an integrated relief valve in a single cast iron body. Designed to regulate hydraulic actuator speeds by directing a controlled priority flow, it handles up to 76 L/min (20 US gpm) across its full adjustable range and withstands system pressures to 250 bar (3630 psi).

Porting is via 1-1/16"-12UN #12 SAE ORB connections, and the aluminium adjustment knob allows straightforward flow setting in service. NBR seals support compatibility with mineral oils to ISO 11158, with alternative fluids available on request. The unit is rated for fluid temperatures from -30 to 120 °C (-22 to 248 °F) and ambient conditions from -30 to 50 °C (-22 to 122 °F), making it suitable for demanding mobile and industrial hydraulic circuits. Net weight is 2.9 kg (6.4 lbs).

SKU: TSK6147-025
Supplier Part Number (MPN): RV2FV2V200G

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6147-025
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Cast Iron, Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
0 - 20
Flow Range (L/min)
0 - 76
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2.9 kg, 6.4 lbs
Internal Materials
Steel components
Maximum Rated Flow
76 L/min, 20 US gpm
Max Rated Pressure
250 bar, 3630 psi
Net Weight
2.9 kg, 6.4 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Bobby R on Dec 9, 2025, 1:12 PM
what's the max pressure this thing handles? got a system running around 3000 psi and want to make sure it ain't gonna be a problem
Answer by: Customer Support on Dec 11, 2025, 7:17 AM
Rated to 250 bar, which works out to 3630 psi, so a 3000 psi system sits comfortably within range. The body is cast iron with steel internals, so it's built to hold up under that kind of load without issues.
Question by: Bruce B on Jul 19, 2025, 9:44 PM
How do I know if this flow divider fits my system's port requirements?
Answer by: Customer Support on Jul 21, 2025, 7:04 AM
The RV2FV2V200G flow divider uses a 1-1/16” -12UN #12 SAE ORB porting, so you'll need to check if your system supports this type. It's commonly used in various hydraulic systems, but ensuring compatibility with your existing setup is key.
