RV Series Variable Priority Flow Dividers with Built in Relief RV2FV2V300G | TSK6147-027

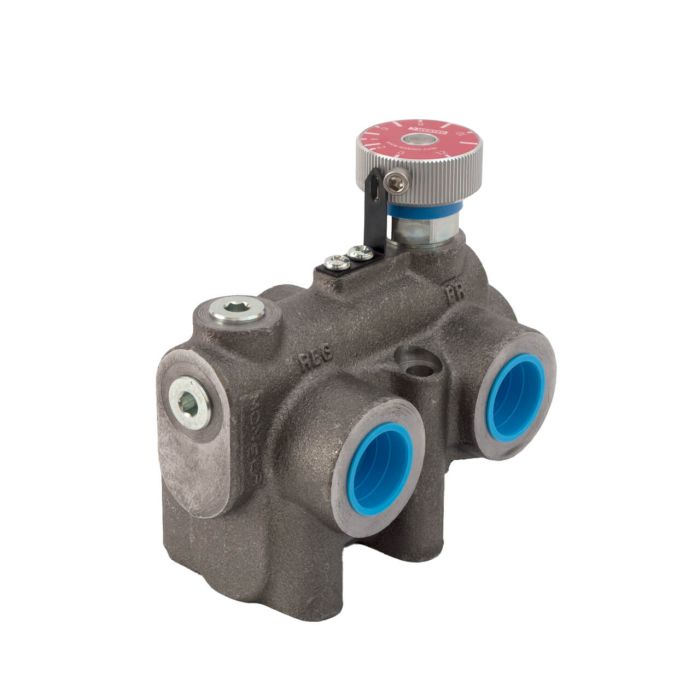

The RV Series Variable Priority Flow Dividers, model RV2FV2V300G by WEBTEC, offer precise control over hydraulic actuator speeds by modulating the flow rate. This robust unit accommodates a maximum flow of 114 L/min (30 US gpm) and withstands pressures up to 250 bar (3630 psi), making it an ideal choice for demanding hydraulic systems. The flow dividers operate effectively across a fluid temperature range of -30 to 120 °C (-22 to 248 °F) and an ambient temperature range of -30 to 50 °C (-22 to 122 °F), ensuring reliable performance in diverse environments.

Constructed with a durable cast iron body and an aluminum knob, the RV2FV2V300G is compatible with mineral oils to ISO 11158, with options for other fluids upon request. Featuring 1-1/16" -12UN #12 SAE ORB porting and NBR seals, this flow divider is designed for seamless integration into various hydraulic systems. The unit weighs 2.9 kg (6.4 lbs), ensuring easy handling and installation.

SKU: TSK6147-027
Supplier Part Number (MPN): RV2FV2V300G
