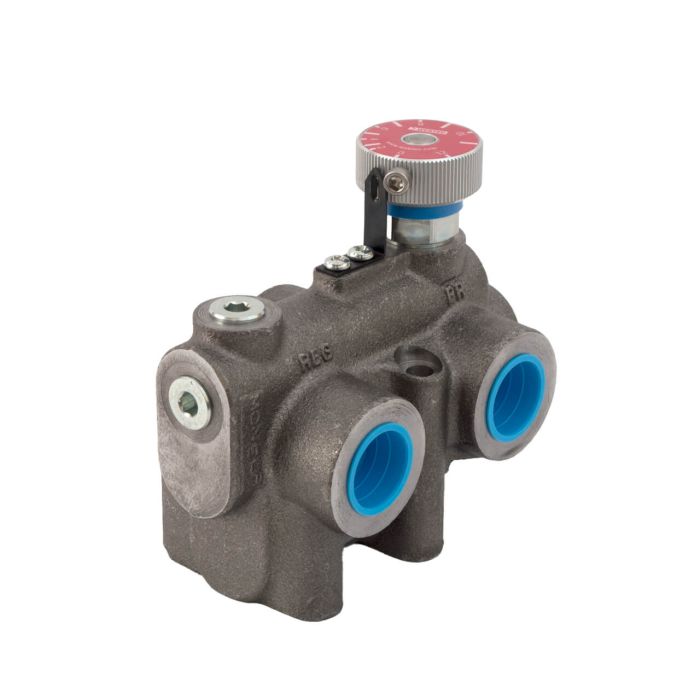

main product photo

RV Series Variable Priority Flow Dividers with Built in Relief RV2FV2V125G-LN | TSK6147-A24

Ask A Question

Description & Features

The WEBTEC RV Series Variable Priority Flow Dividers with Built-in Relief provide robust and precise control of hydraulic actuator speeds. These flow dividers are capable of handling a maximum flow rate of 47 L/min (12.5 US gpm) and can withstand pressures up to 250 bar (3630 psi). They are suitable for use with mineral oils compliant with ISO 11158, and the durable construction features a cast iron body, an aluminum knob, and steel internal components, ensuring reliability in demanding environments.

With a fluid temperature range of -30 to 120 °C (-22 to 248 °F) and ambient temperatures between -30 to 50 °C (-22 to 122 °F), these flow dividers are versatile in various conditions. The NBR seals and 1-1/16" -12UN #12 SAE ORB porting further enhance compatibility and performance. Weighing only 2.9 kg (6.4 lbs), the RV2FV2V125G-LN model is engineered for efficiency and effectiveness in hydraulic systems.

SKU: TSK6147-A24
Supplier Part Number (MPN): RV2FV2V125G-LN

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6147-A24
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Cast Iron, Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
0 - 12.5
Flow Range (L/min)
0 - 47
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2.9 kg, 6.4 lbs
Internal Materials
Steel components
Maximum Rated Flow
47 L/min, 12.5 US gpm
Max Rated Pressure
250 bar, 3630 psi
Net Weight
2.9 kg, 6.4 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Phil W on Apr 8, 2026, 6:51 PM
what's the max pressure this thing can handle? running a system that spikes pretty regularly and don't want to be chasing down failures later
Answer by: Customer Support on Apr 10, 2026, 12:19 PM
Rated to 250 bar, which works out to 3630 psi. For a system with regular pressure spikes, that ceiling gives you reasonable headroom in most industrial and mobile hydraulic setups running standard mineral oil circuits.
