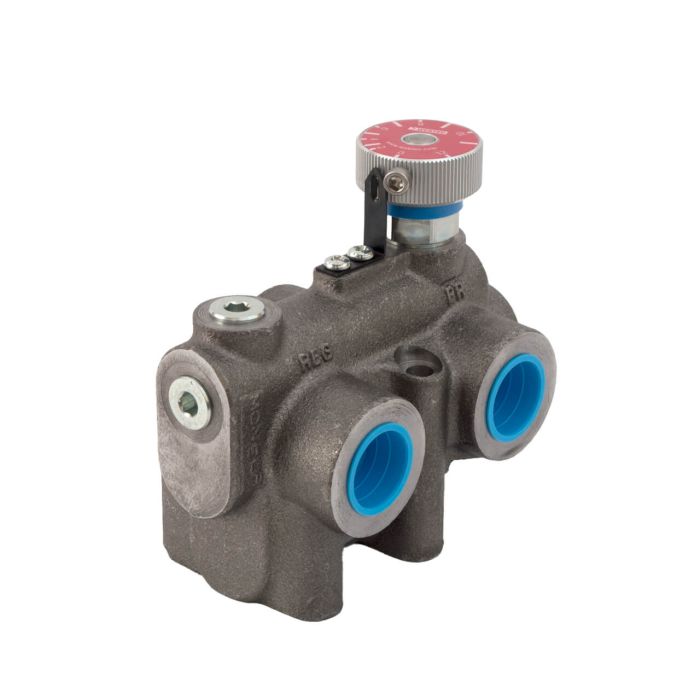

RV Series Variable Priority Flow Dividers with Built in Relief RV2FV2V200G-LN | TSK6147-A25

The RV Series Variable Priority Flow Dividers by WEBTEC, such as the RV2FV2V200G-LN model, are expertly designed to manage hydraulic actuator speeds by adjusting flow rates. With a maximum flow capacity of 76 L/min (20 US gpm) and a pressure tolerance of up to 250 bar (3630 psi), these flow dividers ensure optimal performance in various demanding applications. The unit's robust construction includes a cast iron body, steel internal components, and an aluminum knob, ensuring durability and longevity even under challenging conditions.

Designed for compatibility with mineral oils to ISO 11158, the RV Series flow dividers can also accommodate other fluids upon request, making them versatile for different hydraulic systems. The device operates efficiently across a wide fluid temperature range of -30 to 120 °C (-22 to 248 °F), and an ambient temperature range of -30 to 50 °C (-22 to 122 °F). With its precise porting configuration of 1-1/16" -12UN #12 SAE ORB, this model guarantees seamless integration into existing hydraulic setups.

SKU: TSK6147-A25
Supplier Part Number (MPN): RV2FV2V200G-LN
