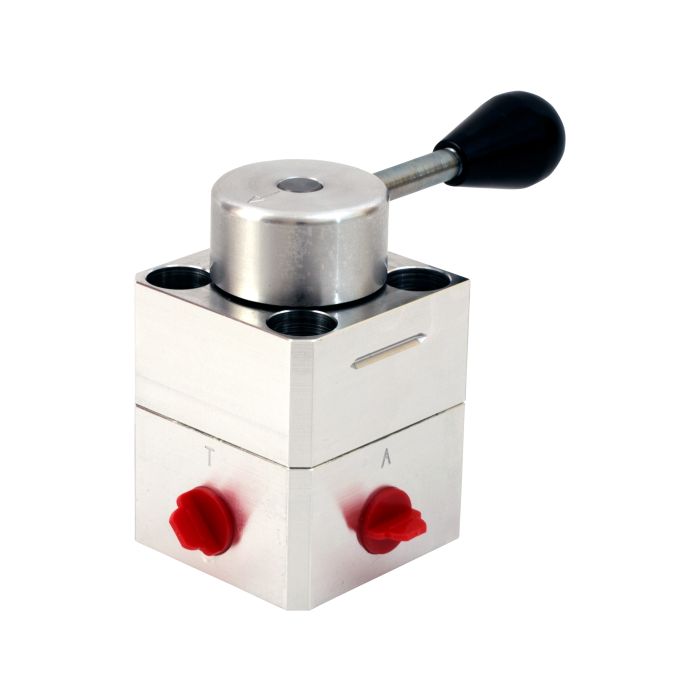

180 Series Rotary Shear Directional Control Valve 183-E2D | TSK6333-0M00

Ask A Question

Description & Features

The 180 Series Rotary Shear Directional Control Valve by WEBTEC, model 183-E2D, is expertly designed to provide reliable performance in demanding industrial environments. With a maximum flow capacity of 38 L/min (10 US gpm) and a maximum pressure rating of 207 bar (3000 psi), this valve ensures efficient hydraulic flow management and robust operation. Suitable for a wide range of temperatures, it operates flawlessly from -30 to 120°C (-22 to 248°F) for fluids and -20 to 50°C (-4 to 122°F) in ambient conditions.

Constructed with durable aluminum and black phenolic thermoset plastic, and featuring carbon steel internal components with NBR seals, the valve is compatible with mineral oils to ISO 11158, with options for other fluids upon request. The 3/8" NPTF porting ensures easy integration into existing systems, while its lightweight design, with a net weight of 1.3 kg (2.9 lbs), makes it practical for a variety of applications.

SKU: TSK6333-0M00
Supplier Part Number (MPN): 183-E2D

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-0M00
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Rod E on Jan 28, 2026, 8:35 PM
3/8" NPTF ports on this thing, that's going to thread straight into standard hydraulic fittings without any adapter needed, right?
Answer by: Customer Support on Jan 30, 2026, 7:04 AM
NPTF is a dry-seal tapered thread, so it cuts its own seal on assembly and mates directly with other NPTF fittings without needing a separate sealing element. Standard NPT fittings will also thread in, though NPTF-to-NPT pairings rely more on thread engagement than a true pressure seal. At 3000 psi working pressure, using matched NPTF fittings on both sides is the cleaner approach.
Question by: Brett W on Dec 22, 2025, 9:23 PM
How does the 180 Series Rotary Shear Directional Control Valve handle extreme temperatures?
Answer by: Customer Support on Dec 24, 2025, 1:55 PM
When dealing with extreme temperatures, this valve performs reliably in a fluid temperature range from -30 to 120°C (-22 to 248°F). It's also designed to function properly in ambient temperatures between -20 to 50°C (-4 to 122°F), making it suitable for a variety of environmental conditions.
