180 Series Rotary Shear Directional Control Valve 182-E2F | TSK6333-AJ10

Ask A Question

Description & Features

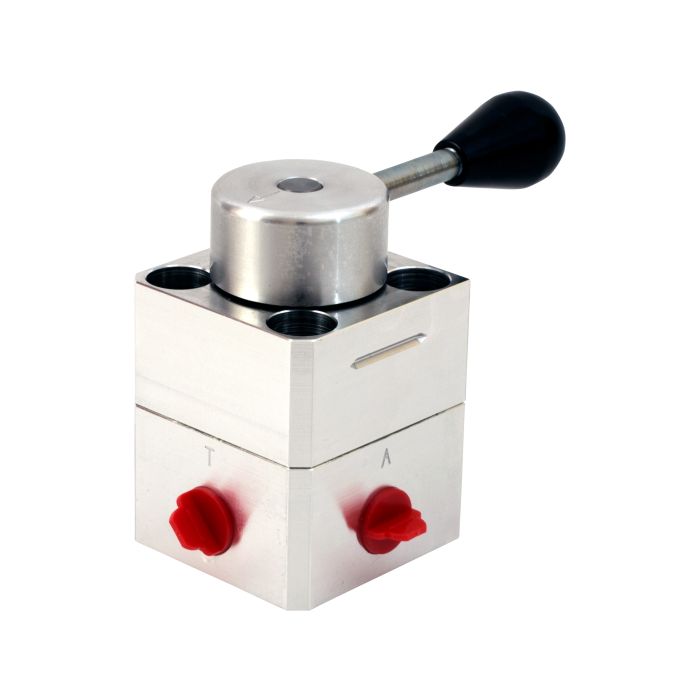

The WEBTEC 180 Series rotary shear directional control valve, model 182-E2F, is designed for reliable directional control in hydraulic systems where leakage must be kept to an absolute minimum. Rated to 207 bar (3000 psi) with a maximum flow capacity of 38 L/min (10 US gpm), it suits a range of medium-duty hydraulic circuit applications.

The valve body combines aluminium and black phenolic thermoset plastic, with carbon steel internals and NBR seals, providing a durable yet lightweight assembly at 1.3 kg. Porting is 3/8" NPTF. Compatible with mineral oils to ISO 11158, it operates across a fluid temperature range of -30 to 120°C (-22 to 248°F) and an ambient range of -20 to 50°C (-4 to 122°F). Alternative fluid compatibility is available on request.

SKU: TSK6333-AJ10
Supplier Part Number (MPN): 182-E2F

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-AJ10
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Frank N on Jan 27, 2026, 9:05 PM
seals are NBR on this valve, gonna be running standard mineral hydraulic oil through it, that gonna hold up alright?
Answer by: Customer Support on Jan 29, 2026, 7:31 AM
NBR holds up well with mineral oils that meet ISO 11158, which is exactly what this valve is rated for. The fluid temperature range runs from -30 to 120°C, so as long as your system stays within that window, the seals should give you solid service life without compatibility issues.
