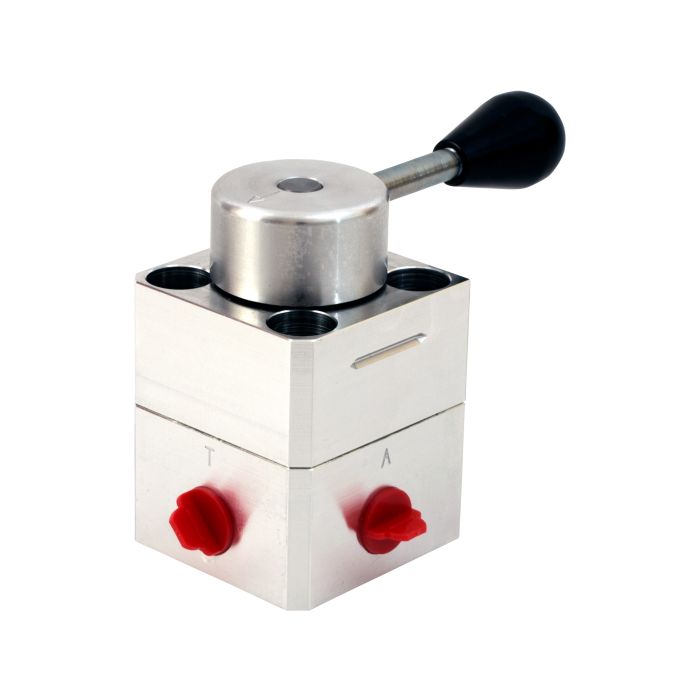

180 Series Rotary Shear Directional Control Valve 182-E2G | TSK6333-AJ11

Ask A Question

Description & Features

The 180 Series Rotary Shear Directional Control Valve by WEBTEC, model 182-E2G, is designed for effective directional control in hydraulic systems, ensuring near-zero leakage. It supports a maximum flow rate of 38 L/min (10 US gpm) and withstands pressures up to 207 bar (3000 psi). This robust valve operates efficiently within a fluid temperature range of -30 to 120°C (-22 to 248°F), making it suitable for various industrial applications. Constructed from durable aluminum and black phenolic thermoset plastic, with carbon steel internals and NBR seals, it guarantees reliability and long service life.

Ideal for use with mineral oils conforming to ISO 11158, this valve features a 3/8" NPTF porting for easy integration into existing systems. Its lightweight design, weighing just 1.3 kg (2.9 lbs), ensures easy handling and installation without compromising performance. The valve's adaptability to a range of operating conditions makes it an essential component in any hydraulic system requiring precise flow management.

SKU: TSK6333-AJ11
Supplier Part Number (MPN): 182-E2G

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-AJ11
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Kent A on Dec 26, 2025, 12:09 PM
seals on this are NBR -- will that hold up running standard mineral hydraulic oil day in and day out?
Answer by: Customer Support on Dec 27, 2025, 1:02 PM
NBR is well-suited for mineral oils meeting ISO 11158, which is exactly what this valve is rated for. Continuous use with that fluid type is fine within the listed temperature range of -30 to 120°C on the fluid side. Where NBR starts to struggle is with certain synthetic fluids or aggressive additives outside that spec, but on straight mineral oil circuits it holds up reliably.
Question by: Harold R on Sep 3, 2025, 11:09 AM
Is the 182-E2G valve suitable for use with mineral oil-based hydraulic fluids?
Answer by: Customer Support on Sep 4, 2025, 1:29 PM
Yes, the 182-E2G Rotary Shear Directional Control Valve is compatible with mineral oils conforming to ISO 11158 standards. If you need to use other fluids, you can request compatibility information.
