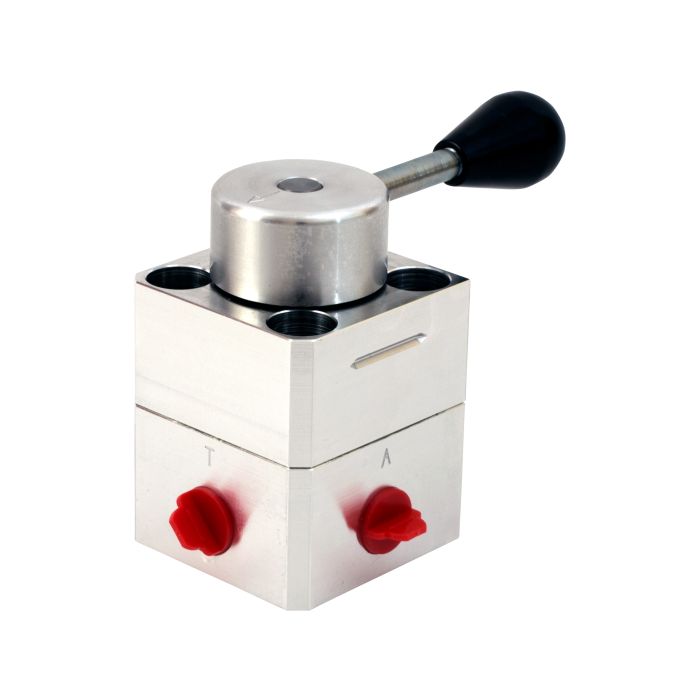

main product photo

180 Series Rotary Shear Directional Control Valve 185-E1F | TSK6333-AR10

Ask A Question

Description & Features

The WEBTEC 180 Series Rotary Shear Directional Control Valve, model 185-E1F, is expertly designed for precise hydraulic flow management. Its robust construction, featuring an aluminium body and carbon steel internals, ensures durability under high-pressure conditions, with a maximum pressure capacity of 350 bar (5000 psi) and a flow range of 26.5 L/min (7 US gpm). This valve is compatible with mineral oils conforming to ISO 11158, with other fluid options available upon request.

Its versatile operating temperature range, from -30 to 120°C (-22 to 248°F) for fluids and -20 to 50°C (-4 to 122°F) for ambient conditions, makes it suitable for diverse industrial applications. The 3/8" NPTF porting and phenolic resin knob ensure reliable performance and ease of use. Weighing only 1.3 kg (2.9 lbs), this valve is efficiently engineered for high performance with minimal maintenance.

SKU: TSK6333-AR10
Supplier Part Number (MPN): 185-E1F

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-AR10
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Phenolic resin knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
7
Flow Range (L/min)
26.5
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
26.5 L/min, 7 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Don O on Aug 14, 2025, 12:49 PM
porting on this is 3/8 NPTF right? trying to figure out if it'll thread straight into my existing manifold without adapters
Answer by: Customer Support on Aug 15, 2025, 2:28 PM
3/8 NPTF is correct. NPTF is a dryseal thread, so it forms a pressure-tight connection on its own without needing sealant tape in most cases, though a lot of folks still use thread sealant for extra insurance at higher pressures. If your manifold is already tapped for 3/8 NPTF, you should be able to thread directly in. If it's tapped for 3/8 NPT, that's also compatible in most installations since the thread dimensions are the same, but NPTF is the tighter-tolerance version of the two.
Question by: Darryl M on Oct 21, 2025, 6:28 PM
Is the 185-E1F directional control valve suitable for use with mineral oils?
Answer by: Customer Support on Oct 23, 2025, 11:47 AM
For fluid compatibility, the 185-E1F valve works well with mineral oils that meet ISO 11158 standards. If you're considering other fluids, it's best to check specific compatibility or request further details.
