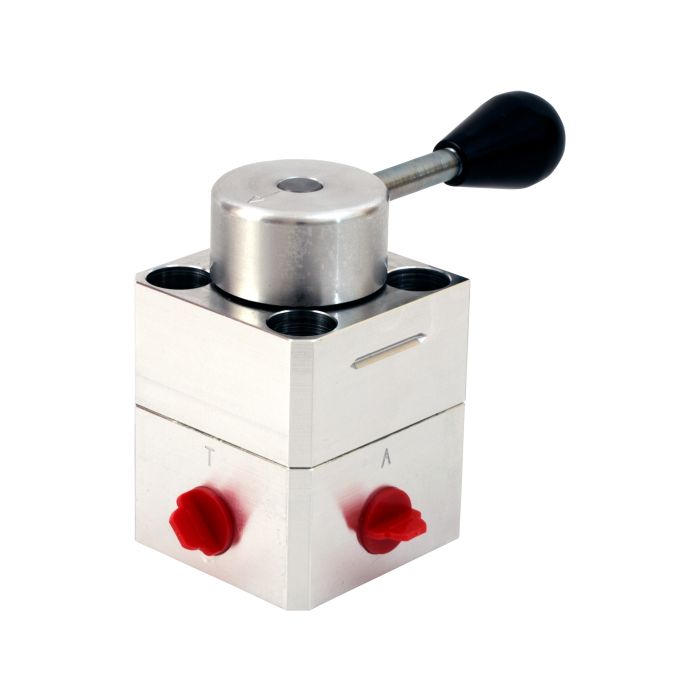

main product photo

180 Series Rotary Shear Directional Control Valve 183-E0D-B | TSK6333-CK00

Ask A Question

Description & Features

The WEBTEC 180 Series Rotary Shear Directional Control Valve is engineered for high-pressure hydraulic systems, providing reliable performance with near-zero leakage. Designed to accommodate a maximum flow of 15 L/min (4 US gpm) and withstand pressures up to 700 bar (10,000 psi), this valve is ideal for demanding industrial applications. It operates efficiently across a broad fluid temperature range of -30 to 120°C (-22 to 248°F) and an ambient temperature range of -20 to 50°C (-4 to 122°F).

Constructed with a robust aluminium body and a phenolic resin knob, the valve's internal carbon steel components ensure durability and longevity. The valve is compatible with mineral oils conforming to ISO 11158 standards, with other fluid compatibilities available upon request. Its 3/8" NPTF porting facilitates easy integration into existing systems. Weighing just 1.3 kg (2.9 lbs), this valve is lightweight yet sturdy, making it a versatile choice for various hydraulic applications.

SKU: TSK6333-CK00
Supplier Part Number (MPN): 183-E0D-B

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-CK00
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Phenolic resin knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4
Flow Range (L/min)
15
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
15 L/min, 4 US gpm
Max Rated Pressure
700 bar, 10000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Scott T on Jul 6, 2025, 4:11 PM
rated for 10,000 psi -- that seem right for a valve this size? thing looks pretty compact for that kind of pressure
Answer by: Customer Support on Jul 8, 2025, 7:46 AM
Compact is actually part of the design intent here. The 183-E0D-B is rated to 700 bar, which is 10,000 psi, and that holds at a max flow of 15 L/min (4 gpm). The rotary shear design is what makes near-zero leakage possible at those pressures without needing a larger body. The aluminum housing keeps weight down to about 1.3 kg, and the carbon steel internals handle the pressure load. Small footprint, serious pressure rating -- that combination is pretty common in rotary shear directional valves.
Question by: Cheryl H on Oct 13, 2025, 12:59 PM
How does the 183-E0D-B valve handle high-pressure situations?
Answer by: Customer Support on Oct 15, 2025, 7:53 AM
The 183-E0D-B valve is built to withstand intense pressure, with a maximum pressure rating of 700 bar or 10,000 psi. This makes it well-suited for demanding applications where reliability under high pressure is crucial.
