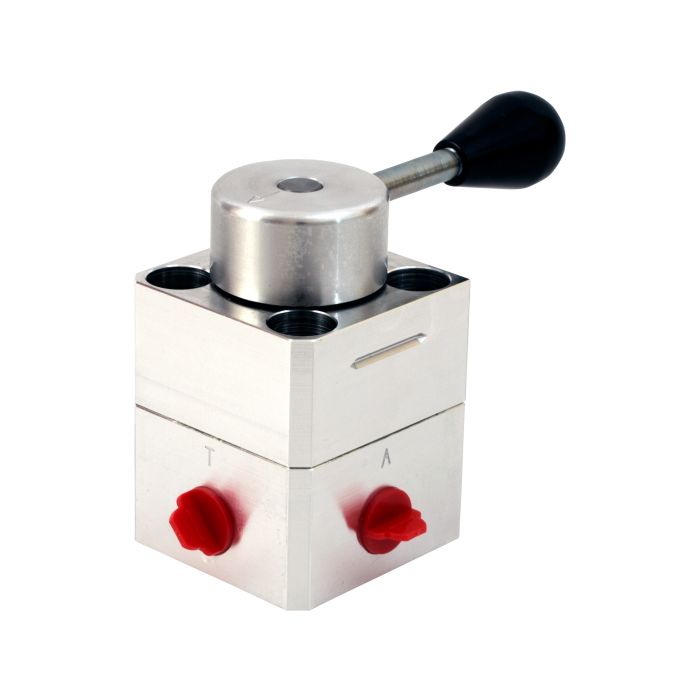

180 Series Rotary Shear Directional Control Valve 183-L2D | TSK6334-0M00

The 183-L2D belongs to the 180 Series of WEBTEC rotary shear directional control valves, designed for reliable directional control in hydraulic systems where leakage must be kept to an absolute minimum. Capable of handling flows up to 38 L/min (10 US gpm) at pressures reaching 207 bar (3000 psi), this compact valve is well suited to a broad range of mobile and industrial hydraulic applications.

Fluid temperature compatibility spans -30 to 120°C (-22 to 248°F), and the valve is rated for ambient conditions from -20 to 50°C (-4 to 122°F). The body combines aluminium with black phenolic thermoset plastic, while internal components are carbon steel and seals are NBR. Porting is 9/16"-18UN #6 SAE ORB, and the valve is compatible with mineral oils to ISO 11158, with other fluids available on request. Net weight is 1.3 kg (2.9 lbs).

SKU: TSK6334-0M00
Supplier Part Number (MPN): 183-L2D
