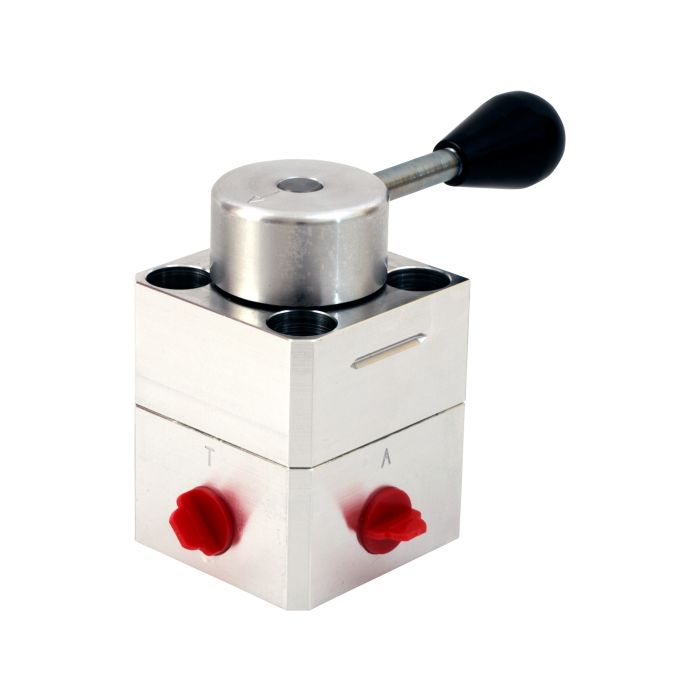

180 Series Rotary Shear Directional Control Valve 182-L2F | TSK6334-AJ10

Ask A Question

Description & Features

Engineered for reliable performance, the 180 Series Rotary Shear Directional Control Valve by WEBTEC, model 182-L2F, excels in high-pressure environments with a maximum capacity of 207 bar (3000 psi). This valve efficiently manages directional control of hydraulic flow, maintaining near-zero leakage to ensure optimal system performance. Accommodating a flow range of up to 38 L/min (10 US gpm), it supports a wide fluid temperature range from -30 to 120°C (-22 to 248°F), making it versatile for various industrial use.

Constructed with durable materials, including an aluminum body and a phenolic resin knob, the valve's internal components are crafted from robust carbon steel for longevity. The NBR seals provide reliable sealing, compatible with ISO 11158 mineral oils and other fluids upon request. The valve features a 9/16" -18UN #6 SAE ORB porting, facilitating seamless integration into existing hydraulic systems. Weighing 1.3 kg (2.9 lbs), this valve is designed for efficient and dependable service in demanding conditions.

SKU: TSK6334-AJ10
Supplier Part Number (MPN): 182-L2F

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6334-AJ10
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Phenolic resin knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
9/16” -18UN #6 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Kirk H on Apr 1, 2026, 4:21 PM
Can this valve handle high-pressure applications without leaking?
Answer by: Customer Support on Apr 2, 2026, 9:50 PM
The 180 Series Rotary Shear Directional Control Valve 182-L2F is designed for high-pressure environments, with a maximum pressure capacity of 207 bar (3000 psi), ensuring near-zero leakage.
Question by: Rex T on Jun 19, 2025, 5:33 PM
what's the max pressure this valve handles, and is 3000 psi enough for most industrial hydraulic circuits?
Answer by: Customer Support on Jun 21, 2025, 7:01 AM
At 207 bar (3000 psi), this rotary shear valve covers the majority of standard industrial hydraulic circuits without issue. Most mid-range mobile and stationary systems run well under that ceiling, so for typical shop or equipment applications it should have plenty of headroom. Just make sure your system's peak pressure, including any spikes, stays within that rating.
