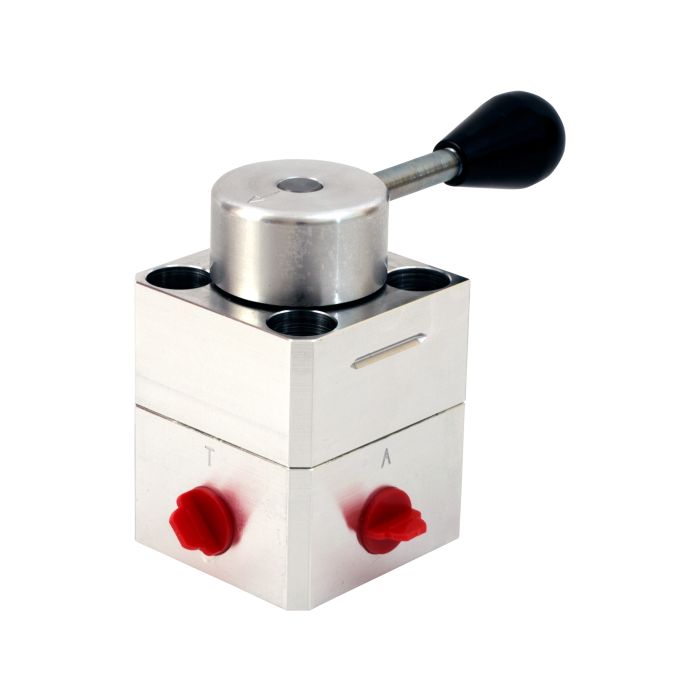

180 Series Rotary Shear Directional Control Valve 182-L2G | TSK6334-AJ11

Ask A Question

Description & Features

Belonging to the 180 Series, the WEBTEC 182-L2G rotary shear directional control valve is designed for reliable directional control in hydraulic circuits where minimising internal leakage is a priority. The rotary shear mechanism maintains near-zero leakage across the valve's operating range, supporting accurate and repeatable flow routing up to 38 L/min (10 US gpm) at pressures to 207 bar (3000 psi).

The aluminium body is fitted with a phenolic resin knob and carbon steel internals, with NBR seals providing compatibility with mineral oils to ISO 11158. Porting is via 9/16" -18UN #6 SAE ORB connections. The valve accommodates fluid temperatures from -30 to 120°C (-22 to 248°F) and ambient conditions from -20 to 50°C (-4 to 122°F), making it suitable for a broad range of mobile and industrial hydraulic applications. Net weight is 1.3 kg (2.9 lbs).

SKU: TSK6334-AJ11
Supplier Part Number (MPN): 182-L2G

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6334-AJ11
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Phenolic resin knob
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
9/16” -18UN #6 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Don P on Feb 22, 2026, 12:20 PM
seals are NBR on this valve, is that gonna hold up okay running standard mineral hydraulic oil day in and day out?
Answer by: Customer Support on Feb 23, 2026, 2:21 PM
NBR seals pair well with mineral oils that meet ISO 11158, which is exactly what this valve is rated for. Continuous duty on mineral oil circuits is well within what NBR handles. Where NBR starts to struggle is with certain synthetic fluids or aggressive phosphate ester types, but for everyday mineral oil use you shouldn't have any issues with seal integrity over time.
Question by: Greg W on May 10, 2026, 7:27 AM
Can this valve handle mineral oils, or do I need a specific type?
Answer by: Customer Support on May 12, 2026, 7:53 AM
This valve works well with mineral oils that meet ISO 11158 standards. If you're considering another type of fluid, it's best to request compatibility confirmation.
