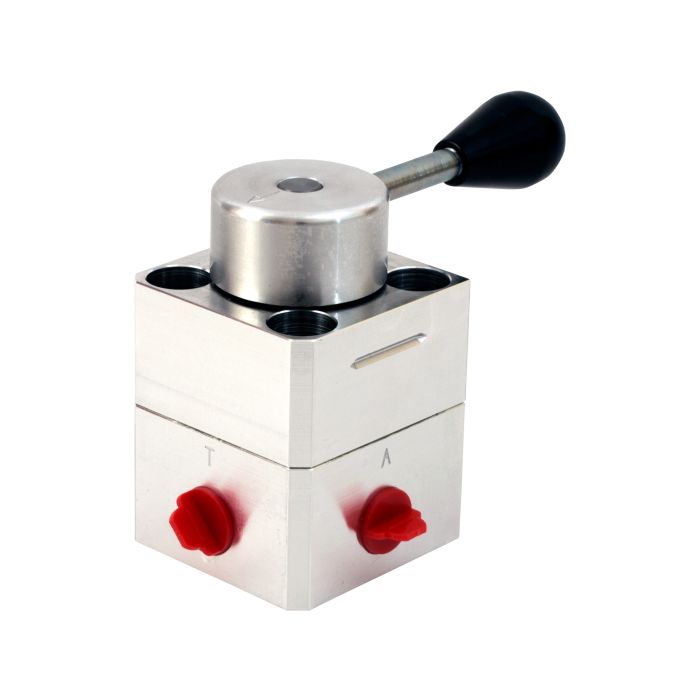

180 Series Rotary Shear Directional Control Valve 185-L0F | TSK6334-AW10

The 185-L0F is a WEBTEC rotary shear directional control valve from the 180 Series, built to handle extreme system pressures up to 700 bar (10,000 psi) while maintaining near-zero internal leakage. Its rotary shear design makes it well suited to high-pressure hydraulic circuits where precise directional switching is required at flow rates up to 15 L/min (4 US gpm).

Constructed with an aluminium and black phenolic thermoset plastic body, carbon steel internals, and NBR seals, the valve is compatible with mineral oils to ISO 11158. Port connections are 9/16 inch -18UN #6 SAE ORB. The fluid temperature range spans -30 to 120°C (-22 to 248°F), with an ambient operating range of -20 to 50°C (-4 to 122°F). At 1.3 kg (2.9 lbs) net, the valve is compact enough for space-constrained installations.

SKU: TSK6334-AW10
Supplier Part Number (MPN): 185-L0F
