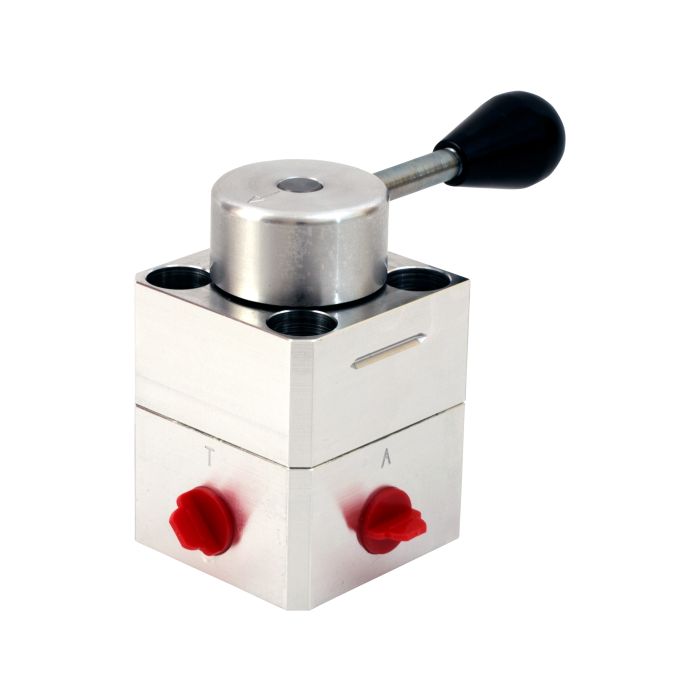

main product photo

180 Series Rotary Shear Directional Control Valve 182-L1F-B | TSK6334-BH10

Ask A Question

Description & Features

The 182-L1F-B is a rotary shear directional control valve from the WEBTEC 180 Series, designed for hydraulic systems requiring precise, low-leakage flow direction control at pressures up to 350 bar (5000 psi) and flow rates up to 26.5 L/min (7 US gpm).

The valve body combines aluminium and black phenolic thermoset plastic with carbon steel internals and NBR seals, giving it a compact, durable construction at 1.3 kg. Porting is via 9/16"-18UN #6 SAE ORB connections, suited to standard industrial hydraulic circuits. It handles fluid temperatures from -30 to 120°C (-22 to 248°F) and is rated for ambient conditions between -20 and 50°C (-4 to 122°F). Compatible with mineral oils to ISO 11158, with alternative fluid compatibility available on request.

SKU: TSK6334-BH10
Supplier Part Number (MPN): 182-L1F-B

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6334-BH10
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
7
Flow Range (L/min)
26.5
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
26.5 L/min, 7 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
9/16” -18UN #6 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Lyle C on Jan 28, 2026, 6:33 PM
How do I know if this 182-L1F-B valve will fit my existing setup?
Answer by: Customer Support on Jan 30, 2026, 9:42 AM
You'll want to check the porting specifications. This valve uses a 9/16” -18UN #6 SAE ORB connection, so make sure that's compatible with your current system.
Question by: Curt W on Nov 10, 2025, 1:06 PM
porting on this valve is 9/16-18UN #6 SAE ORB, does that play nice with standard hydraulic fittings on most mobile equipment?
Answer by: Customer Support on Nov 12, 2025, 7:30 AM
SAE ORB is about as common as it gets on mobile hydraulic systems, so yes, off-the-shelf straight-thread O-ring fittings in that size will mate up without any adapters in most setups. The 9/16"-18UN thread is the standard for #6 SAE, which you'll find on a wide range of cylinders, manifolds, and valve bodies used in ag and construction equipment. Just make sure your mating fittings have the O-ring boss seat in good shape before you torque them down.
