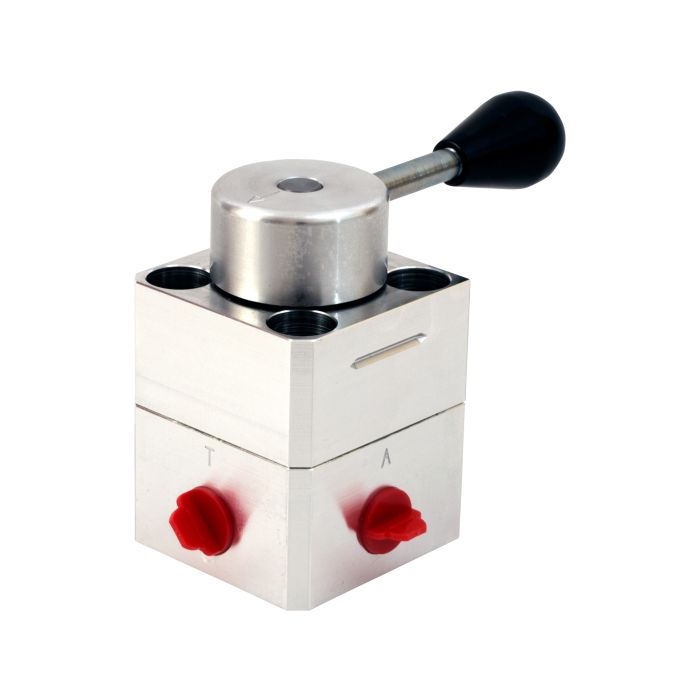

180 Series Rotary Shear Directional Control Valve 185-L2G-B | TSK6334-BS11

Ask A Question

Description & Features

The WEBTEC 180 Series Rotary Shear Directional Control Valve is engineered for precise directional control in high-pressure hydraulic systems. Designed to handle a maximum flow of 38 L/min (10 US gpm) and withstand pressures up to 207 bar (3000 psi), this valve ensures reliable performance under demanding conditions. Its robust construction features a blend of aluminum and black phenolic thermoset plastic for the body, complemented by durable carbon steel internals and NBR seals for optimal sealing performance.

This valve operates efficiently across a broad fluid temperature range of -30 to 120°C (-22 to 248°F) and is compatible with mineral oils conforming to ISO 11158 standards. The compact design includes 9/16" -18UN #6 SAE ORB porting, making it a versatile addition to your hydraulic system. Weighing in at just 1.3 kg (2.9 lbs), it is lightweight yet sturdy, ideal for various industrial applications.

SKU: TSK6334-BS11
Supplier Part Number (MPN): 185-L2G-B

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6334-BS11
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
10
Flow Range (L/min)
38
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
38 L/min, 10 US gpm
Max Rated Pressure
207 bar, 3000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
9/16” -18UN #6 SAE ORB
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Frank A on Sep 2, 2025, 9:50 AM
Is the 185-L2G-B directional control valve suitable for mineral oils?
Answer by: Customer Support on Sep 4, 2025, 7:10 AM
Yes, the 185-L2G-B valve works well with mineral oils that conform to ISO 11158. It's important to ensure the fluid you use matches this standard for optimal performance.
