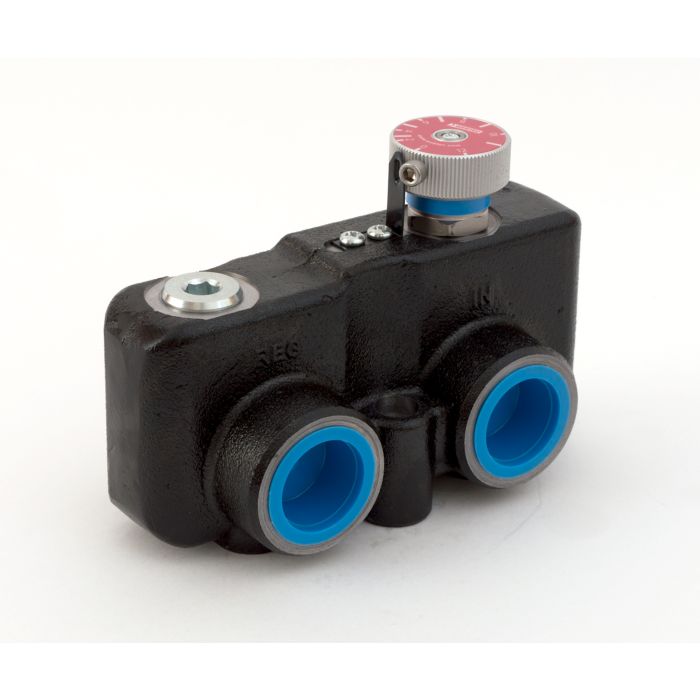

main product photo

VFD190 Series Variable Priority Flow Dividers VFD190RD350S3 SINGLE PACK | TSK6434-144

Ask A Question

Description & Features

The VFD190RD350S3 belongs to WEBTEC's VFD190 Series of variable priority flow dividers, offering adjustable flow distribution to regulate hydraulic actuator speeds across a wide range of industrial machinery. Capable of handling flows from 0 to 132 L/min (0 to 35 US gpm) at pressures up to 420 bar (6000 psi), this unit is well suited to high-demand hydraulic circuits.

The body is constructed from cast ductile iron with steel internal components and finished with an aluminium adjustment knob, giving a net weight of 3.75 kg (8.3 lbs). NBR/PTFE seals provide reliable compatibility with mineral oils conforming to ISO 11158 across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). The 1-5/16" -12UN #16 SAE ORB porting suits standard industrial hydraulic circuit configurations, and the unit remains serviceable in ambient temperatures from -30 to 50 °C (-22 to 122 °F).

SKU: TSK6434-144
Supplier Part Number (MPN): VFD190RD350S3

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6434-144
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast Ductile Iron body painted black Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 35
Flow Range (L/min)
0 - 132
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
3.75 kg, 8.3 lbs
Internal Materials
Steel components
Maximum Rated Flow
132 L/min, 35 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
3.75 kg, 8.3 lbs
Porting
1-5/16” -12UN #16 SAE ORB
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Gary W on Oct 15, 2025, 9:56 AM
what's the max pressure this thing handles? got a circuit running pretty hot and need something that won't give out
Answer by: Customer Support on Oct 17, 2025, 8:55 AM
Rated to 420 bar (6000 psi), so it's built for high-demand hydraulic circuits. If your system is pushing hard, that ceiling gives you plenty of headroom for most industrial and mobile applications running mineral oil.
