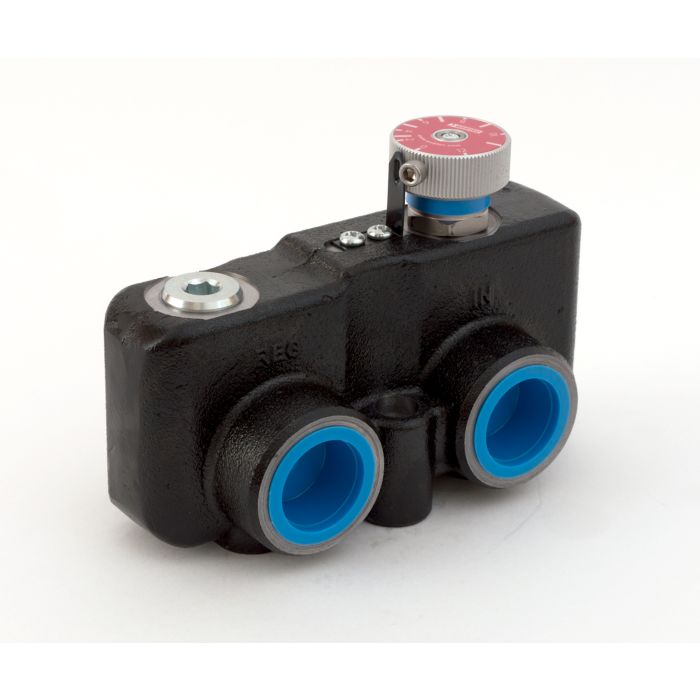

main product photo

VFD190 Series Variable Priority Flow Dividers VFD190LN400S3 SINGLE PACK | TSK6434-D45

Ask A Question

Description & Features

The WEBTEC VFD190 Series Variable Priority Flow Dividers, such as the VFD190LN400S3 model, are designed to precisely control hydraulic actuator speeds by adjusting the flow rate. With a maximum flow capacity of 150 L/min (40 US gpm) and a maximum pressure threshold of 420 bar (6000 psi), these dividers offer robust performance for demanding hydraulic systems. They operate efficiently across a broad fluid temperature range from -30 to 120 °C (-22 to 248 °F) and an ambient temperature range of -30 to 50 °C (-22 to 122 °F).

Constructed with steel components housed in a durable, black-painted ductile iron body, these dividers feature an easy-to-use aluminum knob. Compatible with mineral oils conforming to ISO 11158, they use reliable NBR and PTFE seals. The porting is specified at 1-5/16" -12UN #16 SAE ORB, ensuring secure connections. With a net weight of 3.75 kg (8.3 lbs), the VFD190 Series is a reliable choice for precision flow management in hydraulic systems.

SKU: TSK6434-D45
Supplier Part Number (MPN): VFD190LN400S3

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6434-D45
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast Ductile Iron body painted black Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 40
Flow Range (L/min)
0 - 150
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
3.75 kg, 8.3 lbs
Internal Materials
Steel components
Maximum Rated Flow
150 L/min, 40 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
3.75 kg, 8.3 lbs
Porting
1-5/16” -12UN #16 SAE ORB
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Ray M on Sep 19, 2025, 1:15 PM
How do I know if the VFD190LN400S3 flow divider valve will fit with my existing hydraulic system?
Answer by: Customer Support on Sep 21, 2025, 12:59 PM
For compatibility, check the porting specifications. The VFD190LN400S3 uses a 1-5/16”-12UN #16 SAE ORB port, so ensuring your system matches this will guarantee a proper fit.
Question by: Clint L on Jun 14, 2025, 1:15 PM
porting on this one is 1-5/16" -12UN #16 SAE ORB, that right for both ports, or just the inlet?
Answer by: Customer Support on Jun 15, 2025, 5:35 PM
Both the inlet and outlet ports on the VFD190LN400S3 use the 1-5/16"-12UN #16 SAE ORB fitting standard, so you won't need different adapters for each side. If your existing lines are already terminated in SAE ORB, you should be able to drop this in without a lot of extra hardware.
