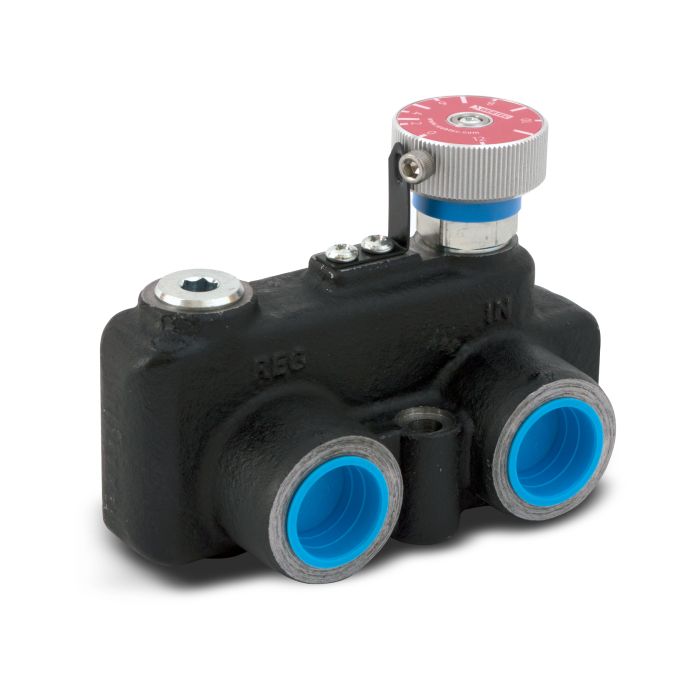

main product photo

VFD120 Series Variable Priority Flow Dividers VFD120RD080M | TSK6602-043

Ask A Question

Description & Features

The WEBTEC VFD120 Series Variable Priority Flow Dividers are essential components for precise hydraulic system management. Designed to manage actuator speeds by adjusting flow rates, this model (VFD120RD080M) offers reliable performance for a range of industrial applications. With a maximum flow of 30 L/min (8 US gpm) and a maximum pressure of 420 bar (6000 psi), it ensures optimal operation under demanding conditions. The flow divider operates effectively within a fluid temperature range of -30 to 120 °C (-22 to 248 °F) and ambient temperatures from -30 to 50 °C (-22 to 122 °F).

Constructed with robust steel components housed in a cast SG Iron body, this flow divider features an aluminium knob for easy adjustments. It is compatible with mineral oils conforming to ISO 11158 and is equipped with M22 x 1.5 porting. Internally, hardened steel and high carbon spring steel ensure durability, while NBR and PTFE seals provide reliable sealing performance. With a net weight of 2 kg (4.4 lbs), this flow divider is both compact and efficient.

SKU: TSK6602-043
Supplier Part Number (MPN): VFD120RD080M

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6602-043
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast SG Iron body. Aluminium knob.
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 8
Flow Range (L/min)
0 - 30
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring stee
Maximum Rated Flow
30 L/min, 8 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2 kg, 4.4 lbs
Porting
M22 X 1.5
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Dale P on Aug 4, 2025, 10:11 AM
How does the VFD120RD080M handle different flow requirements in a hydraulic system?
Answer by: Customer Support on Aug 6, 2025, 9:43 AM
For hydraulic systems that need precise flow management, the VFD120RD080M is a solid choice. It allows you to adjust the flow rate smoothly up to 30 L/min (8 US gpm), which is ideal for controlling actuator speeds. It's great for situations where you need to prioritize certain flow paths without compromising the overall system performance.
Question by: Brenda B on Dec 16, 2025, 10:47 AM
what kind of fluid does this flow divider work with, and is there a temperature limit i should know about?
Answer by: Customer Support on Dec 18, 2025, 7:42 AM
Mineral oils meeting ISO 11158 are what this valve is rated for. Fluid temperature can run anywhere from -30 up to 120 °C, so it handles both cold startups in unheated shops and higher operating temps without issue. Ambient temperature range is a bit narrower, -30 to 50 °C, so keep that in mind if the valve itself is sitting near a heat source.
