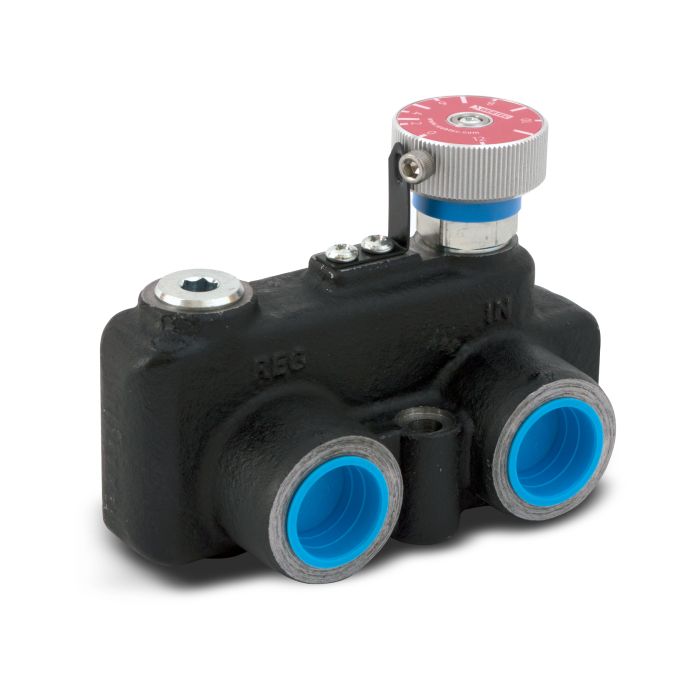

main product photo

VFD120 Series Variable Priority Flow Dividers VFD120RD050J | TSK6602-212

Ask A Question

Description & Features

The WEBTEC VFD120 Series variable priority flow divider gives hydraulic system designers adjustable control over actuator speeds by regulating how flow is distributed between circuit branches. Model VFD120RD050J handles flow up to 19 L/min (5 US gpm) and withstands system pressures to 420 bar (6,000 psi), making it suited to demanding mobile and industrial hydraulic circuits.

Porting is 3/4" BSPP, and the valve accepts mineral oils conforming to ISO 11158 across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). The cast SG iron body houses hardened steel and high carbon spring steel internals, with an aluminium adjustment knob for straightforward flow setting. NBR and PTFE seals provide reliable fluid containment across the full operating range. At 2 kg (4.4 lbs), the unit is compact enough for integration into space-constrained installations.

SKU: TSK6602-212
Supplier Part Number (MPN): VFD120RD050J

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6602-212
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast SG Iron body. Aluminium knob.
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 5
Flow Range (L/min)
0 - 19
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring stee
Maximum Rated Flow
19 L/min, 5 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2 kg, 4.4 lbs
Porting
3/4” BSPP
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Shane R on Jan 23, 2026, 5:58 PM
porting on this is 3/4" BSPP, does that mean it won't thread straight into SAE or NPT ports without an adapter?
Answer by: Customer Support on Jan 24, 2026, 10:06 PM
BSPP and NPT are different thread standards, so direct threading between them isn't possible. BSPP is a parallel British thread, while NPT is a tapered American thread. You'd need an appropriate adapter fitting to connect into NPT or SAE ported systems. Worth sorting that out before installation rather than finding out mid-job.
Question by: Harold S on Dec 21, 2025, 8:19 PM
What's the maximum pressure this flow divider can handle?
Answer by: Customer Support on Dec 23, 2025, 7:13 AM
The VFD120 Series Variable Priority Flow Dividers can handle a maximum pressure of 420 bar, which is equivalent to 6000 psi.
