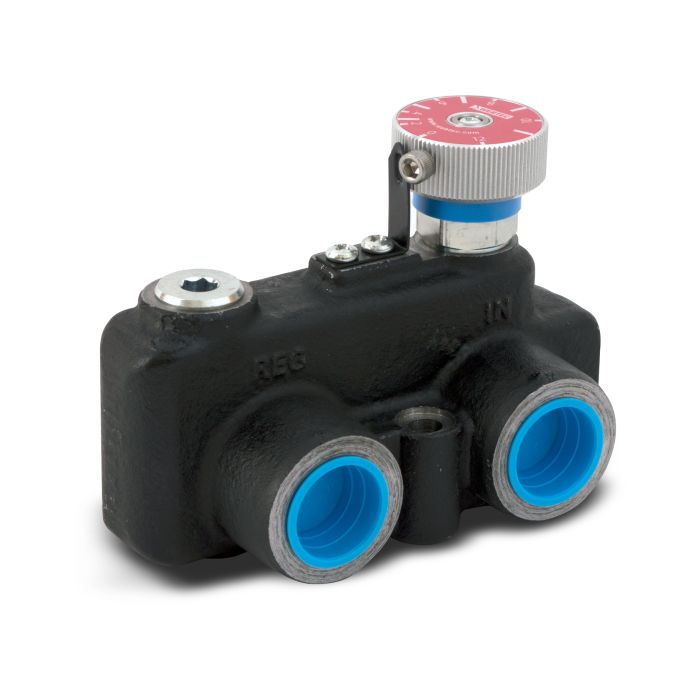

VFD120 Series Variable Priority Flow Dividers VFD120RD250A SINGLE PACK | TSK6602-237

The WEBTEC VFD120 Series Variable Priority Flow Divider is expertly designed for precise control of hydraulic actuator speeds by varying the flow rate. Capable of handling a maximum flow of 95 L/min (25 US gpm) and a pressure of up to 420 bar (6000 psi), this flow divider is an essential component for demanding hydraulic systems. It operates reliably across a wide fluid temperature range from -30 to 120 °C (-22 to 248 °F) and is compatible with mineral oils conforming to ISO 11158 standards.

Constructed with robust steel components encased in a durable cast SG Iron body, the flow divider features an aluminum knob for easy adjustments. Internal mechanisms include hardened steel and high carbon spring steel, ensuring longevity and performance. The unit is equipped with NBR/PTFE seals and 3/4" NPTF porting, providing secure connections and sealing. With a net weight of 2 kg (4.4 lbs), the VFD120RD250A model promises reliability and efficiency in various industrial applications.

SKU: TSK6602-237
Supplier Part Number (MPN): VFD120RD250A
