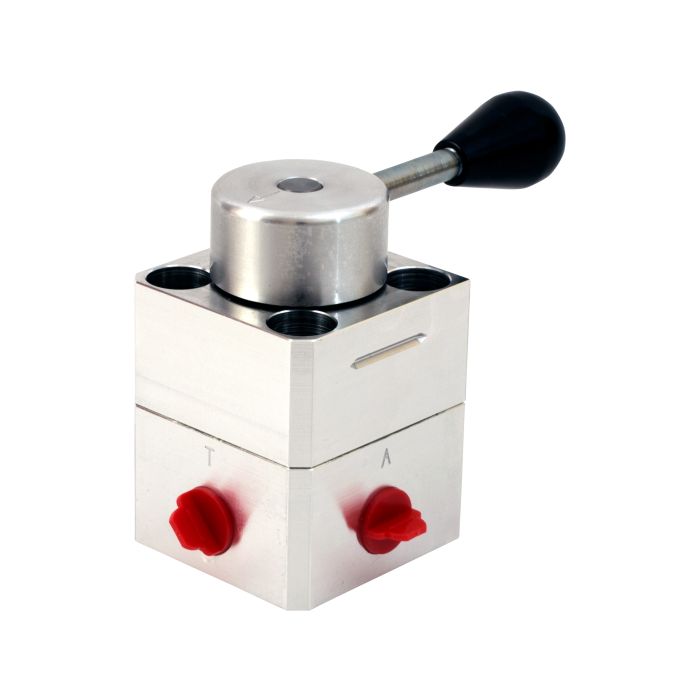

main product photo

180 Series Rotary Shear Directional Control Valve 182-U1D-F | TSK6649-0H42

Ask A Question

Description & Features

The 182-U1D-F is a compact rotary shear directional control valve from WEBTEC's 180 Series, designed for reliable directional control in demanding hydraulic systems. Its rotary shear design delivers exceptionally low internal leakage, making it well suited to applications where precise flow direction and circuit integrity are critical.

Rated to 350 bar (5000 psi) with a maximum flow of 26.5 L/min (7 US gpm), the valve handles a broad fluid temperature range of -30 to 120°C (-22 to 248°F) and is compatible with mineral oils to ISO 11158. The D03 manifold mount interface simplifies integration into existing circuits. Construction combines an aluminium and black phenolic thermoset plastic body with carbon steel internals and NBR seals, keeping net weight to just 1.3 kg (2.9 lbs). Ambient service range extends from -20 to 50°C (-4 to 122°F).

SKU: TSK6649-0H42
Supplier Part Number (MPN): 182-U1D-F

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6649-0H42
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
7
Flow Range (L/min)
26.5
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
26.5 L/min, 7 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
D03 interface Manifold mount
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Shane B on May 7, 2026, 10:28 AM
How well does the 182-U1D-F valve handle high pressure in a hydraulic system?
Answer by: Customer Support on May 9, 2026, 7:14 AM
This valve is built to handle up to 350 bar, or 5000 psi, making it suitable for high-pressure hydraulic systems. Its design ensures near-zero leakage, providing reliable directional control under demanding conditions.
Question by: Shawn P on Jul 24, 2025, 9:27 AM
mounting interface on this is D03, right? trying to figure out if it'll drop into an existing manifold we got on a press circuit
Answer by: Customer Support on Jul 26, 2025, 7:30 AM
D03 manifold mount is correct. The 182-U1D-F uses a D03 interface, so if your existing manifold is already drilled and ported to that standard, it should line up without modification. Worth double-checking your manifold's port layout against the valve's pattern before committing, but D03 is a common enough standard that compatibility is generally straightforward on press circuits.
