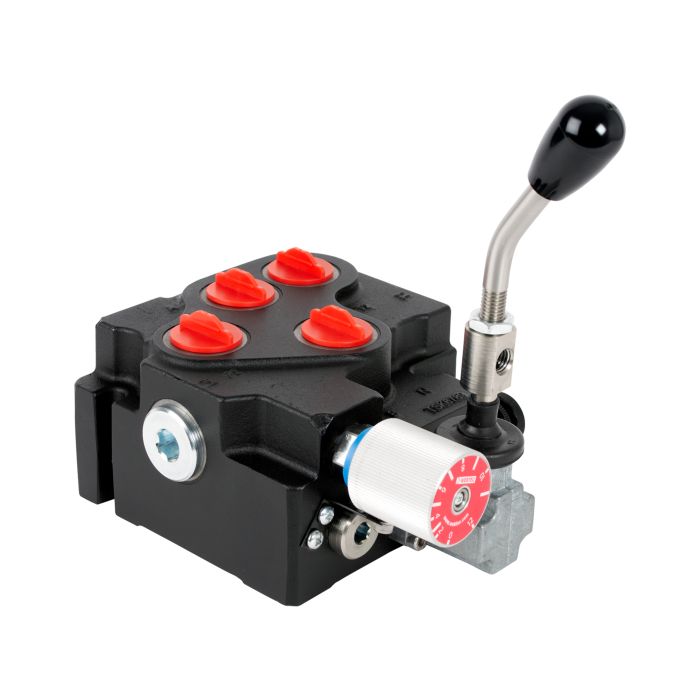

main product photo

CV120 Series Combination Valve - Variable Priority Flow Divider with Directional Control CV120SVDA250G3B | TSK6793-022

Ask A Question

Description & Features

The WEBTEC CV120 Series delivers a practical space-saving solution for hydraulic circuits that require both flow division and directional control within one housing. Model CV120SVDA250G3B handles flows from 0 to 95 L/min (25 US gpm) at pressures up to 250 bar (3,600 psi), making it well suited to mobile and industrial hydraulic applications where mounting space is limited.

Constructed around a cast ductile iron body with steel internal components, the valve weighs 8 kg (18 lbs) and connects via 1-1/16" -12UN #12 SAE ORB porting. NBR/PTFE seals support compatibility with mineral oils to ISO 11158 across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). Ambient service conditions are covered from -30 to 50 °C (-22 to 122 °F). The aluminium adjustment knob allows variable priority flow setting directly on the valve body.

SKU: TSK6793-022
Supplier Part Number (MPN): CV120SVDA250G3B

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6793-022
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast Ductile Iron body painted black Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 25
Flow Range (L/min)
0 - 95
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
8.2 kg, 18 lbs
Internal Materials
Steel components
Maximum Rated Flow
95 L/min, 25 US gpm
Max Rated Pressure
250 bar, 3600 psi
Net Weight
8 kg, 18 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Dale M on Jun 3, 2026, 1:22 PM
porting on this thing is 1-1/16" -12UN SAE ORB -- does that match up with standard #12 SAE fittings or do I need adapters?
Answer by: Customer Support on Jun 5, 2026, 7:32 AM
Standard #12 SAE ORB fittings connect directly without adapters. The CV120SVDA250G3B uses 1-1/16"-12UN #12 SAE ORB porting throughout, so if your lines are already terminated with #12 SAE ORB ends, you're ready to bolt up without any transition hardware.
Question by: Glen S on Jul 2, 2025, 6:40 PM
How does the CV120 Series Combination Valve handle temperature variations?
Answer by: Customer Support on Jul 4, 2025, 4:51 PM
The CV120 Series Combination Valve is built to endure a wide range of temperatures. It operates smoothly in fluid temperatures from -30 to 120 °C (-22 to 248 °F) and ambient temperatures ranging from -30 to 50 °C (-22 to 122 °F). This makes it suitable for various environmental conditions.
