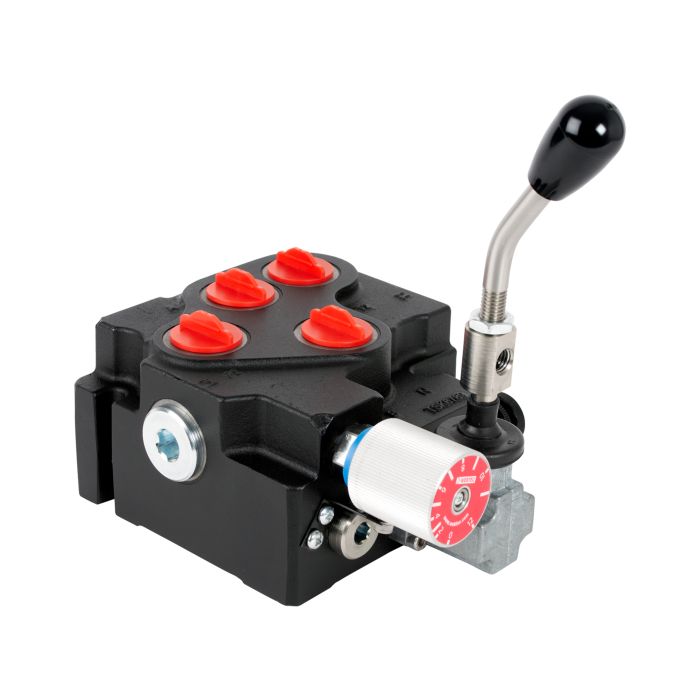

CV120 Series Combination Valve - Variable Priority Flow Divider with Directional Control CV120SVMR250G3B | TSK6793-222

Ask A Question

Description & Features

The CV120 Series Combination Valve by WEBTEC is an innovative solution for hydraulic systems, combining a variable priority flow divider with directional control for seamless operation. Designed to handle a maximum flow of 95 L/min (25 US gpm) and withstand pressures up to 250 bar (3600 psi), this valve is robust yet efficient. Its temperature resilience ranges from -30 to 120 °C (-22 to 248 °F), ensuring reliable performance in diverse environmental conditions. Compatible with mineral oils as per ISO 11158 standards, the valve features 1-1/16" -12UN #12 SAE ORB porting for versatile integration into existing systems.

Constructed with steel components housed in a durable cast ductile iron body, and a black-painted finish, the CV120 Series is built to last. The addition of an aluminum knob enhances user interaction. Seals made from NBR and PTFE ensure long-lasting, leak-proof operation. Weighing 8 kg (18 lbs), this compact unit is a testament to efficient design and engineering excellence.

SKU: TSK6793-222
Supplier Part Number (MPN): CV120SVMR250G3B

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6793-222
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast Ductile Iron body painted black Aluminium knob
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 25
Flow Range (L/min)
0 - 95
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
8.2 kg, 18 lbs
Internal Materials
Steel components
Maximum Rated Flow
95 L/min, 25 US gpm
Max Rated Pressure
250 bar, 3600 psi
Net Weight
8 kg, 18 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Melvin S on Apr 22, 2026, 8:16 AM
Is the CV120 Series Combination Valve suitable for use with mineral oils?
Answer by: Customer Support on Apr 23, 2026, 9:15 AM
Yes, this valve is compatible with mineral oils that meet the ISO 11158 standard. It's designed to handle a range of fluids typically used in hydraulic systems.
