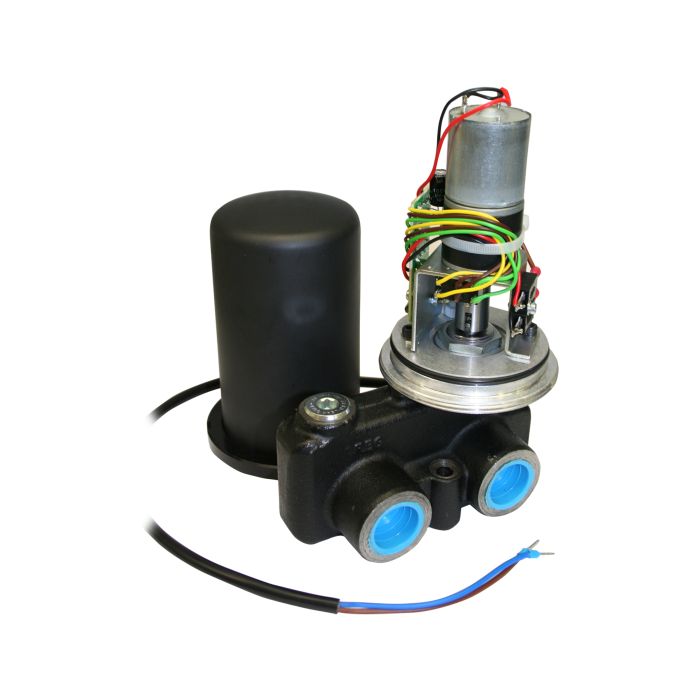

main product photo

VFD120-E Series VFD120-E Series Variable Priority Flow Dividers with Electric Motor Drive VFD120120J-E12 | TSK6877-014

Ask A Question

Description & Features

The WEBTEC VFD120-E Series variable priority flow divider offers electrically driven flow division for precise hydraulic actuator speed control in demanding mobile and industrial applications. Model VFD120120J-E12 is powered by a 12 V DC motor drive and handles flow across a full range of 0 to 45 L/min (0 to 12 US gpm) at pressures up to 420 bar (6000 psi). The 3/4" BSPP ported body is constructed from cast ductile iron painted black, with the drive mechanism mounted on an aluminium plate and mild steel bracket for a compact, rigid assembly.

Internal components use hardened steel and high carbon spring steel, with NBR seals providing reliable performance across a fluid temperature range of -30 to 120 °C (-22 to 248 °F). Compatible with mineral oils to ISO 11158, the unit operates in ambient temperatures from -30 to 50 °C (-22 to 122 °F) and weighs 2.7 kg (6 lbs).

SKU: TSK6877-014
Supplier Part Number (MPN): VFD120120J-E12

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6877-014
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast Ductile Iron body painted black Drive Mechanism mounted on aluminium plate and mild steel bracket.
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 12
Flow Range (L/min)
0 - 45
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2.7 kg, 6 lbs
Internal Materials
Hardened steel & high carbon spring stee
Maximum Rated Flow
45 L/min, 12 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2.7 kg, 6 lbs
Porting
3/4” BSPP
Power Supply
12 V DC
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Bruce J on Jun 26, 2025, 5:05 PM
Can I use the VFD120-E Series Flow Divider with hydraulic systems that operate at high pressures?
Answer by: Customer Support on Jun 27, 2025, 5:57 PM
Yes, the VFD120-E Series Flow Divider can handle systems operating at pressures up to 6000 psi. It's designed for high-pressure applications, making it suitable for demanding hydraulic systems.
Question by: Rod R on Aug 25, 2025, 9:09 PM
what's the max pressure this thing is rated for? running a pretty high-demand circuit and can't have it crapping out on me
Answer by: Customer Support on Aug 27, 2025, 5:02 PM
Rated to 420 bar (6000 psi), so it holds up well in high-pressure hydraulic circuits. The body is cast ductile iron with hardened steel internals and high carbon spring steel, so it's built to handle sustained load without wearing down fast. NBR seals are standard, which work fine with mineral oils meeting ISO 11158.
