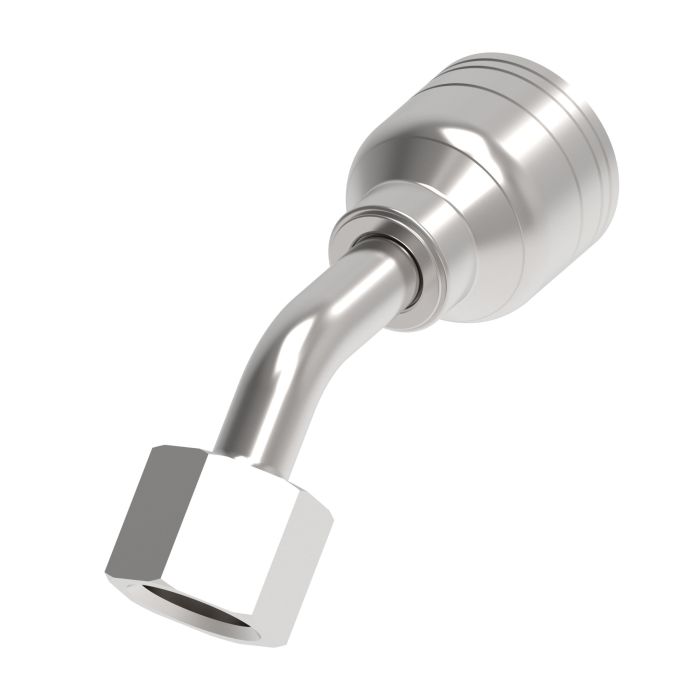

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/8 Female BSP (British) Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Global TTC 1 & 2 Wire Braid Steel Crimp Fitting G 3/8 Female BSP (British) Swivel -06 Hose 45 deg Elbow provides efficient and reliable connection solutions for general purpose low and medium pressure hydraulics. This fitting is crafted by Danfoss Power Solutions (II LLC Aeroquip) ensuring enhanced performance and durability in demanding conditions particularly where shock hazards exist.

Designed for use with H277 or H435 hoses this Aeroquip TTC Steel Crimp Fitting supports G 3/8 BSPP thread types and features a 45-degree elbow for optimal alignment in tight spaces. The fitting's drop dimension of 0.7500 inches and size compatibility with -06 hoses allows it to offer exceptional installation flexibility. The fitting boasts durability facilitated by its robust steel construction.

The female swivel end and the 0.375 end sizes on both ends ensure an adaptable fit to various hydraulic setups. Notably no mandrel or thread sealant is required for this fitting simplifying the installation process. This product is governed by ECCN EAR99 regulations affirming its compliance with international trade laws.

MPN: {{ecc_mpn}}

Supplier Part Number: {{supplierpartnumber}}

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.91 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female BSP Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female BSPP Swivel
Construction Style
Crimp
Cut-Off Factor
1.9 in
d Dimensions
48-1/2 in
Dimension Standards
SAE J1176
Dimensions
4.15 in L x 1.067 in W x 2.52 in H
Drop Dimensions
3/4 in
End Connection Torque
33 to 40 lb-ft
End Gender 1
Female
End Size 1
3/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
h Dimensions
19 mm
Hex Size
0.87 in
Hose Dash Size
06
Inside Diameter
0.24 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
G3/8

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/4 Female BSP (British) Swivel, -12 Hose, 45 deg Elbow

1A12BFA12 TTC Steel BSP Crimp Fitting

G3/4

12

78.6 in

29.4 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1 Female BSP (British) Swivel, -16 Hose, 45 deg Elbow

1A16BFA16 TTC Steel BSP Crimp Fitting

G 1

16

92.4 in

33.2 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/4 Female BSP (British) Swivel, -04 Hose, 45 deg Elbow

1A4BFA4 TTC Steel BSP Crimp Fitting

1/4 in

04

41.9 in

16.5 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Female BSP (British) Swivel, -08 Hose, 45 deg Elbow

1A8BFA8 TTC Steel BSP Crimp Fitting

G1/2

08

61.8 in

24.8 mm

Product Questions & Answers (2)

Question by: Wes S on Oct 7, 2025, 6:49 AM
trying to crimp up a -06 line, is this fitting meant for H277 or H435 hose?
Answer by: Customer Support on Oct 8, 2025, 1:18 PM
For a quick fit check, this crimp fitting is specified for use with H277 or H435 hose in general purpose low to medium pressure hydraulic service, including applications where shock hazards exist.
Question by: Sherry C on Mar 4, 2026, 9:59 PM
fitting says no mandrel or thread sealant needed -- is that actually right or is that just for certain setups?
Answer by: Customer Support on Mar 6, 2026, 6:26 AM
For this particular fitting, that's correct across the board. No mandrel is required during crimping, and the threads don't need sealant applied before assembly. The female swivel end handles sealing on its own as part of how the connection seats. It simplifies the install quite a bit, especially if you're working in a tight spot where applying sealant would be a pain anyway.
