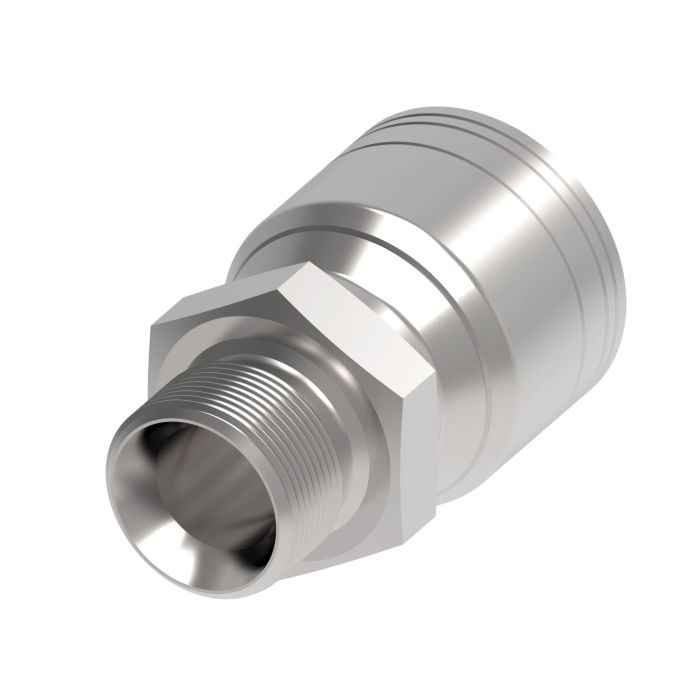

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Male BSP (British) Parallel, -06 Hose, Straight

Ask A Question

Description & Features

The Aeroquip TTC Steel Crimp Fittings are engineered for robust performance in general purpose low and medium pressure hydraulic applications. Suited for use with H277 or H435 hose types where shock hazards are present, these fittings ensure reliable connections. Featuring a G 1/2 Male BSP (British Standard Pipe) Parallel thread and designed for -06 hose size, the crimp fitting eliminates the need for a mandrel, simplifying the installation process. Constructed from durable steel, this fitting from Danfoss Power Solutions (II LLC Aeroquip) offers excellent resistance to wear and corrosion. The straight fitting design facilitates straightforward integration into hydraulic systems. The absence of a thread sealant further streamlines the assembly while maintaining a secure, leak-resistant connection.

MPN: 1A8BP6

Supplier Part Number: 1A8BP6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.06 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Hose, Male BSP
Connection Type 1
Hose
Connection Type 2
Male BSPP 60 deg Cone
Construction Style
Crimp
Cut-Off Factor
1.07 in
d Dimensions
27.1 in
Dimension Standards
SAE J1176
Dimensions
2.06 in L x 1.067 in W x 1.22 in H
End Connection Torque
55 to 70 lb-ft
End Gender 1
Male
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.06 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
G1/2

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/4 Male BSP (British) Parallel, -12 Hose, Straight

1A12BP12 TTC Steel BSP Crimp Fitting

G3/4

12

32.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/4 Male BSP (British) Parallel, -04 Hose, Straight

1A4BP4 TTC Steel BSP Crimp Fitting

1/4 in

04

20.9 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 3/8 Male BSP (British) Parallel, -06 Hose, Straight

1A6BP6 TTC Steel BSP Crimp Fitting

G3/8

06

23.1 in

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, G 1/2 Male BSP (British) Parallel, -08 Hose, Straight

1A8BP8 TTC Steel BSP Crimp Fitting

G1/2

08

28.3 in

Product Questions & Answers (3)

Question by: Shawn S on Aug 3, 2025, 9:04 AM
got a -06 hose and need a straight male BSPP end, is this the right fitting or am i off a size?
Answer by: Customer Support on Aug 4, 2025, 3:51 PM
The key callouts are G 1/2 male BSPP (parallel) on the threaded end and -06 on the hose side. If your port is G 1/2 BSPP and your hose is size -06, this matches those two connection points.
Question by: Eddie S on May 9, 2025, 10:00 AM
does this fitting work without a mandrel during install, or do i need to pick one up separate?
Answer by: Customer Support on May 10, 2025, 2:26 PM
No mandrel needed for this one. The crimp design on the TTC fitting handles the connection without that extra tooling step, which cuts down on setup time and keeps things simpler at the bench.
Question by: Larry W on Feb 2, 2026, 1:37 PM
I'm looking to replace a fitting on my tractor. How can I be sure this one will fit my hose?
Answer by: Customer Support on Feb 4, 2026, 6:21 AM
This fitting is designed for a -06 hose size. If your tractor uses that size, and you need a G 1/2 Male BSP (British Standard Pipe) Parallel thread, it should work.
