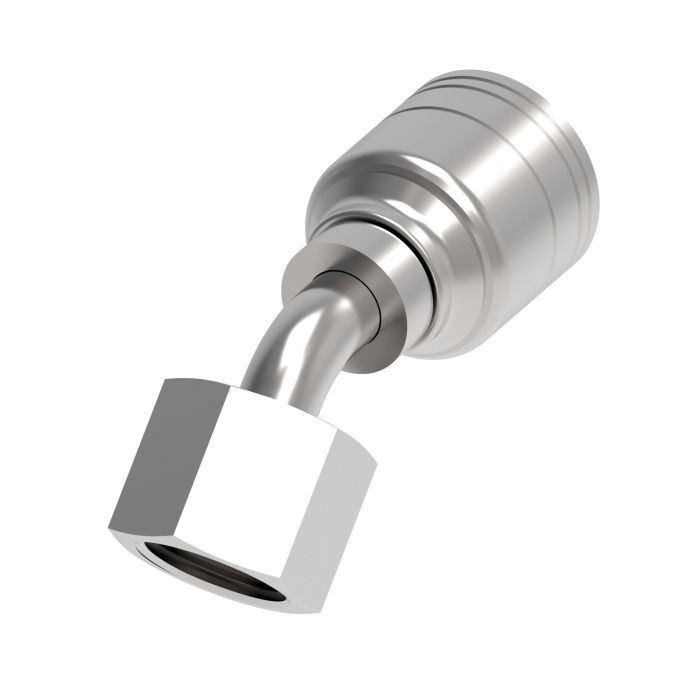

main product photo

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

Optimize hydraulic systems with the efficient and reliable Aeroquip TTC Steel Crimp Fitting. Designed for general-purpose low and medium-pressure hydraulics it ensures robust performance in applications where shock hazards exist. This fitting is meticulously engineered for 1 & 2 wire braid steel crimp connections providing a secure and durable fit.

Featuring an M18 x 1.5 Female German DIN 3902 24-degree flare heavy-duty swivel it is compatible with -04 hose size and offers a seamless 45-degree elbow design. With end size 1 being 22 mm and a tube O.D. of 10 the fitting guarantees precise connections facilitating fluid control. This product supports the Aeroquip TTC model label and does not require a mandrel.

Use the Aeroquip TTC Steel Crimp Fitting to maintain efficiency in environments demanding high standards of hydraulic integrity. The fitting's compact drop dimension of 0.6700 and an end type 1 of metric make it ideal for various hydraulic setups.

MPN: 1A6DSA4

Supplier Part Number: 1A6DSA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.36 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS 24 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.44 in
d Dimensions
38 in
Dimension Standards
SAE J1176
Dimensions
2.79 in L x 0.882 in W x 1.53 in H
Drop Dimensions
0.67 in
End Connection Torque
37 to 44 lb-ft
End Gender 1
Female
End Size 1
22 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
h Dimensions
17 mm
Hex Size
0.87 in
Hose Dash Size
04
Inside Diameter
0.16 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M18x1.5
Tube OD
10 mm
Tube Outside Diameter
10 mm

Similar Products

Model Number Thread Size Tube O.D. Hose Dash Size d Dimensions h Dimensions Price Action
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M24 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -08 Hose, 45 deg Elbow

1A12DSA8 TTC Steel DIN Heavy Crimp Fitting

M24x1.5

16

08

50 in

23 mm

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M20 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -06 Hose, 45 deg Elbow

1A8DSA6 TTC Steel DIN Heavy Crimp Fitting

M20x1.5

12

06

43 in

19 mm

Product Questions & Answers (3)

Question by: Randy M on Sep 8, 2025, 2:46 PM
trying to swap out a fitting, is this one the M18 x 1.5 female swivel with the 24 degree DIN flare, and does it go on -04 hose?
Answer by: Customer Support on Sep 10, 2025, 10:14 AM
It’s a metric female M18 x 1.5 connection built to the German DIN 3902 24 degree flare style, and the hose end is for -04 size in the Aeroquip TTC 1 and 2 wire braid steel crimp line.
Question by: Tony J on Mar 6, 2026, 9:37 PM
fitting says -04 hose size, does that mean it'll only work with 1 and 2 wire braid hose or can it go on something heavier?
Answer by: Customer Support on Mar 8, 2026, 12:55 PM
the -04 hose size is correct, and this one is built specifically for 1 and 2 wire braid steel crimp hose. Heavier multi-spiral constructions are outside what this fitting is rated for, so you'd want to match it accordingly when pulling your materials together.
Question by: Jean J on Feb 2, 2026, 12:08 PM
Will this fitting hold up okay in a hydraulic system that sees some shock?
Answer by: Customer Support on Feb 4, 2026, 8:58 AM
Engineered for general-purpose low and medium-pressure hydraulics, it's designed to provide robust performance specifically in applications where shock hazards exist.
